Raw material: LDPE, GMS, TAC, Talc, Butane or Natural Gas
Capacity:2T/day
Certification: CE, ISO9001
Skype:lewis15863824208

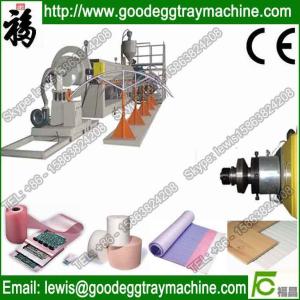

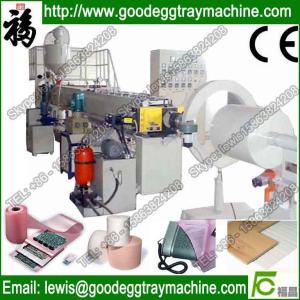

EPE Foam Sheet Extruder Line Introduction:
Polyethylene foam Sheet, also named as pearl cotton. It’s a kind of
new –type packing material with the features of damp proof, shock
proof, sound insulation, heat preservation and good plasticity. It
is an ideal substitute of traditional packing materials, and widely
used in the packing of fruit, instruments, bags & luggage,
shoemaking, household appliances, electronic product, hardware,
furniture, fragile goods, etc. Features of this extrusion line:
reliable quality, high output, low maintenance, high automation,
easy handling with reasonable price
EPE Foam Sheet Extruder Line Line:
1.Automatic feeding material, equipped with automatic alarm system
when lack of raw material
2.The cool method adopt air cooling & water cooling. The control of
the temperature is steady and exact. The temperature is dropped
quickly.
3. The filter changer system has two holes no stop, no cut off
material. Automatic hydraulic screen changer, save time, can
increase production to 10%.
4. Machine head control adopt diaphragm-type pressure gauge,
guarantee the quality of sheet is steady.
5. The winding automatic change over, the length fix long .automatic
counting, the longest width of rewinding can be 2.8m
6.There is an explosion-proof electric machine beside the butane gas
pump to ensure the safety.
Principle of EPE Foam Sheet Extruder Line:
EPE Foam Sheet Extruder Line introduction : The L/D of screw is 55
: 1.The raw material is high pressure and low density polyethylene
. Through extruding system basis on formulation the raw material
and the auxiliary material are transported into hopper by auto
feeding system. The GMS will be injected into barrel by the pump as
anti-contractor agent . Butane pump inject the liquid butane into
the screw barrel and foam .The temperature is dropped by the barrel
then the products will be extruded from the machine head . Fixed
and cooled by fixing drum then after processed by expanding system
,haul-off system and winding system . According to the demand for
length by customer, automatically warned by meter counter, and then
change rolls automatic .After make record of the weight and packed
can be delivery to the warehouse.
Main Technical Parameters of EPE Foam Sheet Extruder Line: |
Model: |
| FCFPM-90 | FCFPM-105 | FCFPM- 120 | FCFPM-150 | FCFPM-170 |
Extruder: |
| 90/55 | 105/55 | 120/55 | 150/55 | 170/55 |
Screw speed: | r/min | 5-45 |
Foaming Ratio: |
| 10-40 |
Product width: | mm | 800-1600 | 1000-2000 | 1000-2000 | 1000-2000 | 1000-2000 |
Product thickness: | mm | 0.5-3.0 | 0.5-5.0 | 0.8-8.0 | 1.0-10.0 | 2.0-15.0 |
Cooling Method |
| Air-cooled, water-cooled |
Installed Power | kw | 90 | 100 | 120 | 150 | 180 |
Dimension: | m | 20×2.3×2.2 | 23×2.3×2.2 | 25×2.3×2.2 | 30×2.3×2.2 | 32×2.3×2.2 |
Weight: | T | 6 | 8 | 12 | 15 | 17 |
