Brand Name : | Bluesteel |
Model Number : | z purlin metal framing machine |
Certification : | CE |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 20 set per month |
Delivery Time : | 30days |
Automatic C Z Shape Purlin Interchange Roll Forming Machine , Changable Size Purlin Forming Machine
Effective width: | 80 -300mm |
Raw Material width: | 200-600mm |
Product thickness: | 1.5-3mm |
Processing speed: | 8-12m/min |
Work Pressure: | 235/345mpa |
Voltage: | 380v/50hz/3phase |
Dimension: | 10000*1200*1500 |
Weight: | 3.5-7.2tons |
C purlin height: | 80-300mm |
Z purlin height: | 100-300mm |
Control system: | PLC |
Warranty: | 14 months |
Machine feature:
We can make several dimensions in one machine.You can choose manul change size purlin machine.
Also ,you can choose auto change size machine.Just push a button ,it will change within seconds.
We also make c z purlion changeable machine.
Work folw:
Coil--Decoiler--guiding device-- roll forming --cutting-- run out table
Machine components:
Decoiler | 1set (passive type and hydrualic expand one for choice) |
Guiding | 1set |
Rollformer | 1set(manul change and auto change for choice) |
PLC | 1set |
Hydraulic station | 1set |
Cutter | 1set |
Run out table | 1set or auto stacker |
And so on |

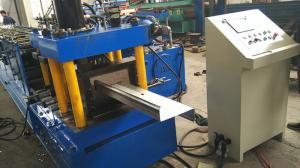

Machine overview:
We choose best machine parts to make sure mahine is durable and stable.Using big hydraulic station to make sure power supply.

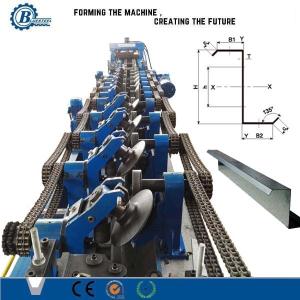

C Z purlin:
Metal framing Structure for roof and building system:
![]() |
