    High Efficiency Hard Stone Mobile Crushing Plant , Impact Crusher Station

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : Y3S1548F1010
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

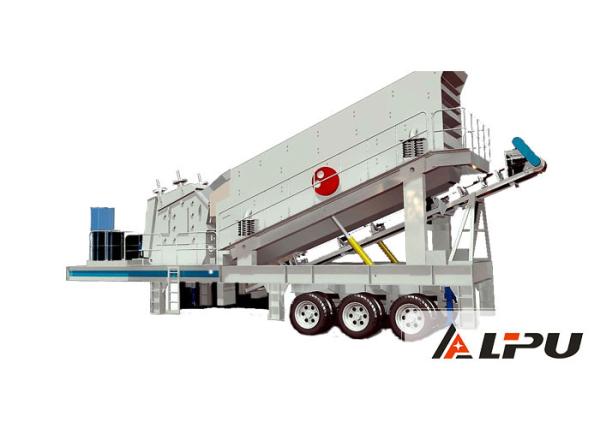

    High Efficiency Hard Stone Mobile Crushing Plant , Impact Crusher Station


    High Efficiency Mobile Impact Crusher Station , Hard Stone Crushing Plant

    Introduction:

    Mobile Impact Crusher Station is a new type highly efficient rock crushing plant, belonging to the impact crushers, which push the limits of coarse crushing in the displacement space. Jaw crushers and vibrating feeders compose the unit of mobile crushers (rough crushing units).

    Structure of Mobile Impact Crushing Station:

    The whole mobile impact crushing station includes primary crushing equipment, secondary crushing equipment, belt conveyor and so on. Every stage is a separate unit, which can do different jobs. And belt conveyors can deliver stones among crushers.

    Advantages:

    The mobile crushing station has the advantages of reasonable matching, unobstructed discharge line, reliable working, convenient operation, high efficiency and low energy consumption.
    Granite, basalt, dolerite and river stone belong to hard stone with high silicon content. In the actual crushing line, we must take full account of the investment cost and obtain the greatest return on investment. Therefore, to design hard stone crushing line, we recommend vibrating feeder, jaw crusher as primary crushing, cone crusher as secondary crushing, and vibrating screens accompanied by other equipment such as belt conveyors, electric control panel and dust collector.

    Unit Components:

    1.Belt Conveyor

    2.Vibrating Screen

    3.Motor Of Vibrating Screen

    4.Impact crusher

    5. Motor Of Impact Crusher

    6.Switch Box



    Model and Specification:

    Model

    Y3S1548F1010

    Y3S1848F1210

    Y3S1860F1214

    Y3S2160F1315

    Y3S2460F1320

    Crusher Model

    PFW1010-Ⅲ

    PFW1210-Ⅲ

    PFW1214-Ⅲ

    PFW1315-Ⅲ

    PFW1320-Ⅲ

    Vibrating Screen Model

    3YK1548

    3YK1848

    3YK1860

    3YK2160

    3YK2460

    Tyre Parameters

    Double- axle

    Double- axle

    Triplex-axle

    Triplex-axle

    Triplex-axle

    Feeding Belt Conveyor Model

    B500×12m

    B650×15m

    B800×15m

    B1000×18m

    B1200×18m

    Front Belt Conveyor Model

    B500×8m

    B650×8m

    B800×8m

    B1000×10m

    B1200×10m

    Left Belt Conveyor Model

    B500×10m

    B500×10m

    B500×10m

    B650×12m

    B800×12m

    Right Belt Conveyor Model

    B500×10m

    B500×10m

    B500×10m

    B650×12m

    B800×12m

    Belt Conveyor Under the Screen Model

    B500×9m

    B500×9m

    B500×9m

    B650×12m

    B800×12m

    Generator Power(kW)(optional)

    160

    200

    250

    360

    450

    Transport length(mm)

    12400

    14200

    14200

    16000

    16000

    Transport Width(mm)

    3000

    3000

    3000

    3200

    3200

    Transport Height (mm)

    4000

    4200

    4200

    4500

    4500

    Weight(t)

    26

    34

    42

    51

    63


    The Shippment of Mobile Impact Crushing Plant:
