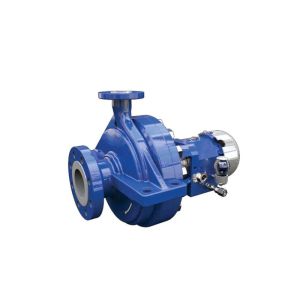

Split Volute Overhung Impeller Pump , Horizontal Single Stage Suction Pump For Water Industry

Adopts Different Shaft Seals Overhung Impeller Centrifugal Pump Pumping Pulp

Description:

The pumps are single stage, horizontal, radically split volute pumps. The Casing is centerline supporting and equipped with single radically impeller, axially inlet and radically outlet. The pump adopt wear ring and balancing hole to realize the hydraulic balance, Shaft seal adopts standard mechanical seal and flushing plan. Standard piping is designed according to API standard. The suction flange rating pressure grade is the equal to discharge flange. Pumps rotation is clockwise viewed from motor end.

Feature:

The pump is directly driven by the motor through the coupling. The gear, membrane coupling and hydraulic coupling can be used according to client’s requirements. The pump can be driven by turbine of motor.

The rotating direction of pump is clockwise when viewed from the driving end.

The high pressure boiler feed pumps are used for feeding high pressure boiler of pumping high pressure clean water.

Applications:

In water industry, particularly seawater desalination plants.

In heating and air-conditioning.

In fissile and nuclear powerstations.

In environmental protection engineering.

In ship and offshore industries.

Paragon Industrial Corporation is established in 2007, which is located in Hangzhou, Zhejiang China. It is an enterprise consist of paragon industrial Corp., Hangzhou JoHo Imp &Exp Co.Ltd ,Hangzhou Zhenxing pumps factory and Hangzhou Sixin pumps manufactory. The company is mainly engaged in developing and producing non clog centrifugal pump, paper and pulp pumps, refiner, agitator, vacuum pump, chemical pump and so on.

Our pumps are the revised model of Anderitz, So they are good at efficiency, energy-saving, low noise and environmental protection, They are exported to Southeast Asia, like Indonesia and Singapore for more than 8 years.

Our target markets are paper and pulp making industry and chemical processing industrial . Paragon has experienced engineers who can provide the users optimal solutions based on the practical situation.

We also provide Clients with many services, such as complete equipments , installing, maintenance and mountings. We guarantee the Clients with competitive products, timely delivery and satisfied service.
