Bus Passengers Count Digital Statistics System SD Recording Counter
RS232 or RS485 integration
Please contact us for installation Manual in details
We have two models of people counter ,one is with the function of
recording i.e DVR function ,specifically 4ch HDD GPS 3G mobile dvr
with people counting ;the other model is the new one GPRS people
counter not have the function of recording ,but simple and can
integrate into your platform .We can customize more
projects.Welcome to browse our offical website for more examples .
Highlights
The 3rd generation of Video counter system is based on advanced
smart counting technology and attains high accuracy by detecting
morphological characteristics of human(head and shoulder) and the
human movement situation of getting On&Off the vehicle. It is
mainly characteristic of its high accuracy, despite crowded group,
closthes, colors etc. Each counting camera can detect passenger On
and Off, and can distinguish human and object.
Main Features
Product Description&Specification:
System: Linux
CPU: TMS320DM6446
Operation Interface: OSD with mouse and remote control
Video Counting input: Max 2 channels
Video Counting output: 1 channel
Accuracy: 95% up
Operating voltage: DC 8—36V
Operating power: ≤4W
Operating temperature: -20°C -- +80°C
Operating humidity: 10% -- 95%
USB port: Standard 2.0
Counting input port: Aviation
It includes the whole suit and installation guide below
1. Main Unit
Counter Processor(brain), Mounted at the bottom of seat or ceiling
of bus, process and calculate the data, send to SD card storage or
GPRS&3g

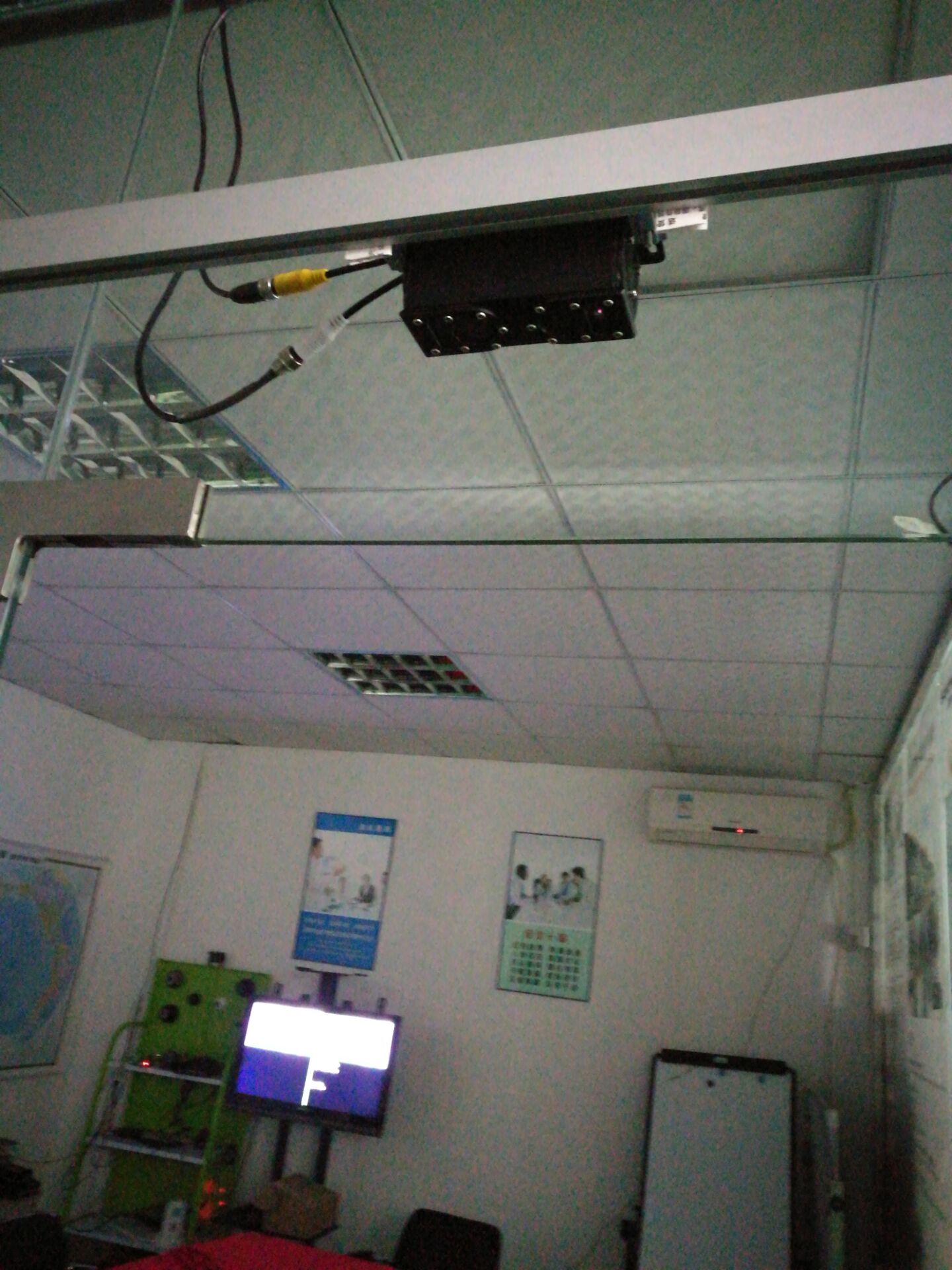

2. Binocular Camera
Mounted on the ceiling of the doors, counts passengers get in or
out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close
status.
Wire Connection
1. connect “CAM1” to “AV1” ; connect “CAM2” to “AV2” ;
2. connect “CAM3” to “AV3” ; connect “CAM4” to “AV4” ;
3G Monitoring Platform
Our protocol for integration
