XPS Foamed Heat Preservation Board Extrusion Line , XPS Foamed Board Extruder

    Buy cheap XPS Foamed Heat Preservation Board Extrusion Line , XPS Foamed Board Extruder from wholesalers

    Buy cheap XPS Foamed Heat Preservation Board Extrusion Line , XPS Foamed Board Extruder from wholesalers
    • Buy cheap XPS Foamed Heat Preservation Board Extrusion Line , XPS Foamed Board Extruder from wholesalers

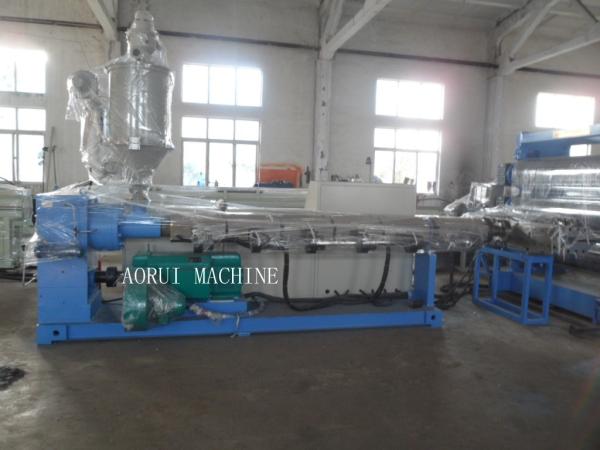

    XPS Foamed Heat Preservation Board Extrusion Line , XPS Foamed Board Extruder

    Ask Lasest Price
    Brand Name : AORUI
    Model Number : Single screw
    Certification : CE UL CSA
    Price : Negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 Sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    XPS Foamed Heat Preservation Board Extrusion Line , XPS Foamed Board Extruder


    XPS Foamed Heat Preservation Board Extrusion Line , XPS Foamed Board Extruder


    Quick detail:


    Condition : new

    Application:Plates,refrigerator,air conditioner

    Screw design: single screw


    Description:


    XPS foam is an insulation board manufactured of fully recyclable material. It is produced from foamed polystyrene, a material that doe’s not deteriorate. The cell structure in the board is built up of very fine closed cells that give the product its excellent physical and mechanical characteristics.


    An excellent insulation that saves energy

    This special cell structure means that the sheet doe’s not conduct heat. When you lay XPS boards as an underlay any heat from your room or floor will be reflected back towards the floor surface. As you will not be wasting heat through your floor you will utilize your energy in an effective manner and thereby lower your energy consumption and carbon footprint.


    Effective protection against cold and damp

    XPS boards not only take care of the heat, they are also an effective guard against the cold and damp. The cold will be held back by the non conducting characteristics of the foam and as XPS board is also water repellent it will not rot or go mouldy and will help hold back any damp from your floor.

    XPS boards are also resistant to cement, plaster, and most alkalis, however not against organic solvents.


    Applications:


    1 . XPS foamed board, has a perfect closed-pore alveolate structure.

    2 . Its density, water absorption

    3 . The complete machine adopt sole possession of the new design


    Specifications:


    Main extruder screw diameter

    120mm

    130mm

    150mm

    co-extruder screw diameter

    60mm

    60mm

    70mm

    Main ext L/D

    38:1

    38:1

    38:1

    co-ext L/D

    33:1

    33:1

    33:1

    motor power of main ext

    185kw-350kw

    185kw-350kw

    185kw-350kw

    motor power of co-ext

    37kw

    37kw

    45kw

    Thickness range

    1-6mm

    1-6mm

    1-6mm

    Width

    1400mm-2100mm

    1400mm-2100mm

    1400mm-2100mm

    Max. output

    350kg/h-800kg/h

    350kg/h-800kg/h

    350kg/h-800kg/h

    actual power consumed

    200kw-400kw

    200kw-400kw

    200kw-400kw


    Competitive Advantage:


    1. good after-service

    2. spare parts are free

    3. guarantee:one year or according to customer’s requirement.
