KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller
KLX Series centrifugal pump is upgraded from KS centrifugal pump,
not only optimize the internal structure, such as impeller design,
dead angle treatment, machine seal pressure balance design and the
machine seal is completely in the flushing area.
Description
Options
1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM ( Double or Single
Seal )
2. Gasket: viton / NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ
5.Certificate: CE, 3A, FDA...
Specifications
| Product Name: | KS-20 SS316L centrifugal beverage pump open impeller witoout cover
for beer |
| Valve Body Material: | SS304 / SS316L / 1.4301 / 1.4404 |
| Seal Material: | EPDM (Standard, FDA approval) FPM (Viton) and NBR |
| Max. Flow: | 150 m³/h |
| Max. Speed: | 3600 min-1 |
| Max. Head: | 70H(m) |
| Max. Working Pressure: | 7 bar/99 PSI |
Max. Working
Temperature: | 120 °C |
| Motor: | ABB / domestic / SIEMENS |
| Motor Frequency: | 50HZ, 60HZ |
| Surface treatment: | Inner polished and Sandblast outside |
| Application structure: | KS/BS |
| Availably connection: | Tri-Clamp, Thread, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Low discharge option : | Low discharge / diaphragm valve / ball valve / butterfly valve |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
| Rotors: | Opening |
| Level: | Sanitary grade |
Applications
1. This pump is manufactured in stianless steel and with a shrouded
motor.
2. Sanitary and cost-efficient design makes it perfect for the
daries, beverages, foods-processing, pharmaceutical and fine
chemical industries.
Technical Advantages:
1. Maintenance disassembly and installation can be completed
without professional staff and special tools
2.Initial use of installation debugging, even if a short reverse
rotation will not be damaged.
3.Impeller and shaft are connected by keyway, impeller and
mechanical seal rotating ring are connected by pin. Mechanical seal
static ring and pump body are connected by special shaped flange
4. Sompatible with single and double mechanie seal, only need to
change machanical seal
Impeller Disassmebly

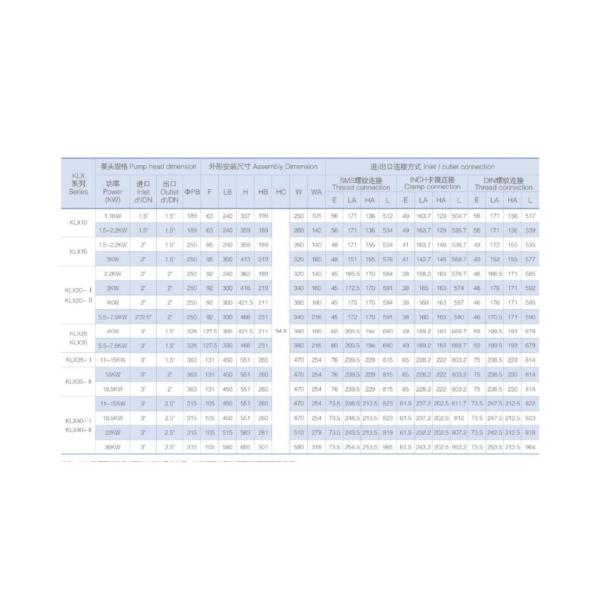

KLX Series centrifugal pump various configuration

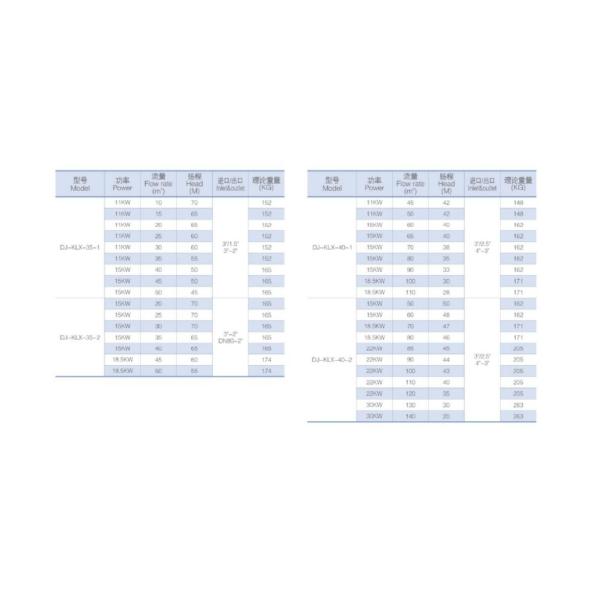

Selection Table of KLX centrifugal pump
Competitive Advantage
“DONJOY is the only company that pass nine series of products by
American 3A certification organization in Asian sanitary pumps and
valves field.”
Packaging Details
Plywood case or customerized. Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
