SS316L sanitary pneumatic reversing valve of double seats for fluid conveying
Specification
Product Name | SS304 / SS316L sanitary pneumatic reversing valve of double seats for fluid conveying |
Material of valve body | SS304 / 316L |
Material of seal ring | EPDM |
Max. working pressure | 10 bar |
Max. working temperature | 130°C |
Size | DN25 - DN150 or 1" - 6" |
Connection | Threaded, welded, clamped |
Standard | DIN, SMS, RJT, 3A |
Operating mode | Manual, Pneumatic, Positioner |
Certificate | FDA, CE, ISO |
Double stop pneumatic actuator | To adjust regulator to slow the moving speed of actuator, anti - shocking and lengthen lifetime |
Body seat | double seats |
Body type | 222type,221type,212type,211type,111type,121type,122type,112type |
Installation | With double stop regulator |
Features
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor
Product drawings

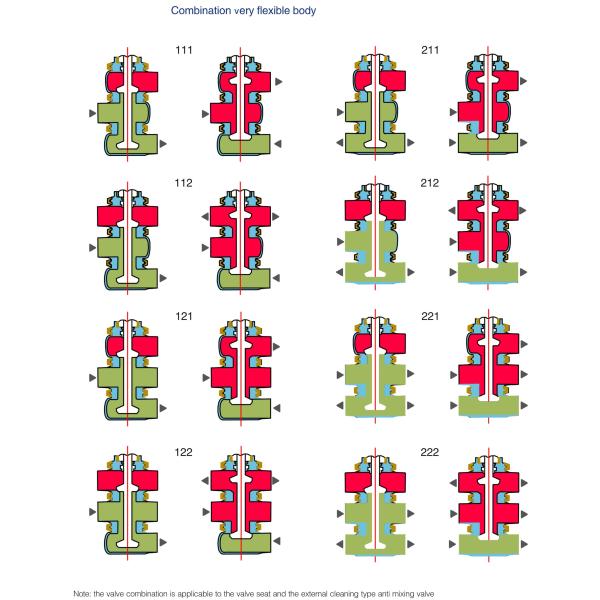

Product body type
Tag: Donjoy reversing seat valve , Donjoy change over valve, Donjoy Sanitary valve
![]() |
