1 t 3 m hand lifting chain hoist, chain block with big capacity for
industrial use

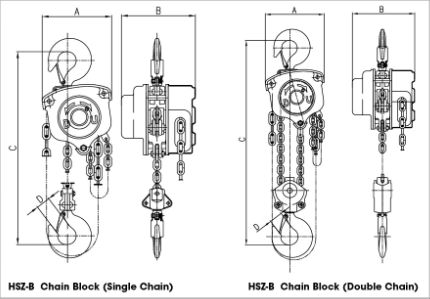

HSZ-B CHAIN BLOCK| Model | HSZ-0.5B | HSZ-1B | HSZ-1.5B | HSZ-2B | HSZ-3B | HSZ-5B | HSZ-10B | HSZ-15B | HSZ-20B | HSZ-30B |
| Rated load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | 30 |
Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 5 | 3 | 3 | 3 | 3 |
| Test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 18.75 | 25 | 37.5 |
Efforts required at capacity(N) | 262 | 324 | 395 | 330 | 402 | 430 | 438 | 447 | 438 | 442 |
Diameter at load chain(mm) | 5 | 6 | 7.1 | 6 | 7.1 | 10 | 10 | 10 | 10 | 10 |
| NO. of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 6 | 8 | 10 |
| Dimensions(mm) A | 127 | 156 | 180 | 156 | 180 | 230 | 410 | 410 | 645 | 710 |
| B | 115 | 131 | 142 | 131 | 124 | 171 | 171 | 204 | 215 | 398 |
| C | 288 | 334 | 415 | 459 | 536 | 660 | 738 | 1028 | 1002 | 1050 |
| Net weight(kg) | 7 | 10.5 | 15.5 | 16 | 23 | 39 | 69 | 95 | 155 | 237 |
| Extra weight per meter of lift(kg) | 1.5 | 1.8 | 2 | 2.7 | 3.2 | 5.3 | 9.8 | 14.2 | 19.6 | 23.9 |
features:
1) Capacity from 0.5T to 30T
2) Have certificate of CE
3) Got certificate of ISO9001
4) Automatic double-pawl braking system.
5) Asbests-free brake discs.
6) Drop forged hooks and hook holders to ensure superior quallity and safety
7) More thickness of sheet cover,gear cover and side plates for
good quality.
8)The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one
1.Why choose us?
Seagull has more than 20 years experience on this lifting equipments field. All our sales work in
seagull more than 10 years and know our products very well.
We will feedback your email within 8 hours. We control the defect
of lifting equipments under 0.01% over 15 years . This means, we has the ability to preview problems.
Therefore, We will avoid any risk happen if you make a wise choose
on seagull.
2.How about sample policy?
We accept sample order. Please inform your detailed sample
requirement, such as the model, the capacity, the lifting height
and so on. If we have the sample in stock , the ship will be
quicker. If we don’t have the stock, we will make the sample as
soon as possible. Please be patient and wait for a period of time.
The sample fee and express fee usually paid by client, for special
policy need to apply by client and approved by our leaders.
3.How to make an order?
Please send us your purchase order by Email or Fax,
1) Product information: Quantity, Specification (capacity, lifting
height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Customer information: Company name, Address, Phone number,
Destination seaport/airport.
4) Ship by FOB or CIF or CNF.
4.Which payment way is available?
30% T/T at advance, 70% T/T by copy of B/L.
100% L/C at sight(long cooperation ).
5.What import customers you are cooperation?
CM,MSC USA ,JET Canada,TRACTEL France, BEAVER Austrialia,HFS
Austria,HHH Japan,etc.
