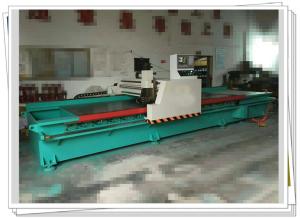

Stainless Steel Horizontal Plane Slot Machine For Sheet Metal V
Grooving Work
Brief introduction:
Horizontal plane slot machine is the pre-procedure before folding
on hydraulic press brake.
The purpose of slotting on the sheet metal is for small bending
raidus, so as to produce sophisticated shape structure.
Description of horizontal plane slot machine:
- Plane slot machine is mainly used to make the V shape grooving in
various kinds of sheet metal.
- It is suitable for high-grade construction decoration industry.
- The machine frame & beam adopt welding structure,with good rigidity
& small deformation.
- Working speed is controlled by inverter with various speed
adjustable.
- Working procedure is smooth and efficient during the cutting
process.
- 3 axes cnc control, high positioning accuracy, wide processing
range.
- Machine is equipped with top clamp and side clamp respectively,
hydraulic pneumatic hybrid clamping system, adjustable pressure.
- The machine has the function of self-repair. If the table is not
flat after long time use or defective, self-repair function could
make the machine looks as a new one.
Technical Parameter:
| SN | Item | Parameter |
| 1 | Processing plate thickness (mm) | 0.6 - 4 |
| 2 | Processing plate length (mm) | 3200 |
| 3 | Processing plate width (mm) | 1250 |
| 4 | Grooving speed (m/min) | 60 |
| 5 | Min. Distance of V grooving distance (mm) | 8 |
| 6 | Min. setting unit of Y axis (mm) | 0.01 |
| 7 | Min.positioning accuracy of Y axis (mm) | ±0.03 |
| 8 | Min. setting unit of Z axis (mm) | 0.01 |
| 9 | Min.positioning accuracy of Z axis (mm) | ±0.03 |
| 10 | Main motor power (Kw) | 4.5 |
| 11 | Hydraulic system Working pressure | 6-8Mpa |
Feature:
- Using integrated table frame structure, movable gantry beam, whole
structure tempering after weld, with good rigidity without
deformation.
- Sheet metal keep still while gantry beam moving, preventing the
sheet metal from scratch due to the scrap iron entered beneath the
clamp.
- No relative displacement between work piece & work table after
clamping, avoiding scratch on the sheet metal.
- Work speed VFD controlled, working procedure stable & high
efficiency, cutting surface with high quality.
- Adopt side clamp & sheet metal movable top clamp structure, one
clean up procedure is enough after the whole sheet metal process
finished.
Three or four alloy blade processing simultaneously, cutting output
average distribute, decrease the job deformation, prolong the blade
using life, low down the production cost.
Small bending raidus job sample after slotting:
Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own
engineer team, who is good at design, develop & build special
solution catering for your individual requirement.
Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for
oversea trading. Depends on your location, combined transport by
rail and sea is also an option. Certainly railway transportation is
also acceptable if it is the most suitable approach.
After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole
machine quality. During this time, any issue proved because of the
machine flaw itself,we would take the whole responsibility of it.
Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
Engineer service on user premises is also available for necessary.
Name of the machine:
sheet metal slotting machine, sheet metal grooving machine, metal
plate grooving machine, CNC Stainless steel V Groover machine,CNC V
Grooving machine,CNC v-cutting machine, stainless steel slotting
machine, stainless steel plane slot machine,cnc slotting machine
