Vortex steam flow meter MT100VX series from METERY TECH.

    Buy cheap Vortex steam flow meter MT100VX series from METERY TECH. from wholesalers

    Buy cheap Vortex steam flow meter MT100VX series from METERY TECH. from wholesalers
    • Buy cheap Vortex steam flow meter MT100VX series from METERY TECH. from wholesalers

    Vortex steam flow meter MT100VX series from METERY TECH.

    Ask Lasest Price
    Brand Name : oem
    Certification : ISO CE
    Model Number : 9888
    Price : Negotiable
    Delivery Time : 3-5 days
    Payment Terms : T/T Western Union MoneyGram
    Supply Ability : 200 sets/month
    • Product Details
    • Company Profile

    Vortex steam flow meter MT100VX series from METERY TECH.

    Email: info@metery-tech.com, sales@meterytech.com
    -------------------------------------------------------------------------------
    Cellphone: +86 18841127006
    Skpye: meterytech
    LINE: meterytech
    Whatsapp: +86 18841127006
    Wechat: Kai123263788
    QQ: 123263788

    Metery Technology Inc

    --------------------------------------------------------

    www.meterytech.com

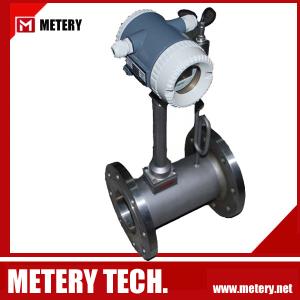

    Photo of vortex steam flow meter MT100VX


    Product Description
    Parameter of vortex flow meter
    Measured Mediumsliquids, gases and steams (NOTE: the mediums should be unidirectional or can be seen as unidirectional.)
    When the dryness of saturated steams ≥85%, they can be seen as unidirectional.
    Temperature of Mediums- 40°C ~ + 350°C
    Pressure of Mediums1.6MPa, 2.5MPa, 4.0 MPa
    For over 4.0 MPa, please contact us freely, for it needs special customization.
    Accuracy1.0; 1.5
    Span Rate1:8 ~ 1:30(compared with the standard atmospheric pressure)
    1:8 ~ 1:40 ( compared with the nominal temperature water)
    Flow RangeLiquids: 0.4 ~ 7.0 m/s
    Gases: 4.0 ~ 60.0 m/s
    Steams: 5.0 ~ 70.0 m/s
    Nominal DiameterDN 25, 40, 50, 65, 80, 100, 125, 150, 200, 250,300 mm
    Materials1Cr18Ni9Ti
    Reynolds No.Normally, 2*104 ~ 7*106
    Resistance CoefficientCd ≤ 2.6
    Licensed Vibration AccelerationLUGB type ≤ 0.2g
    Class of ProtectionIP65
    Class of Explosion-ProofIntrinsically Safe Explosion-Proof: Exia II CT2 ~ CT6
    Explosion Suppression: Exid II CT4
    Conditions of SurroundingsTemperature of Surroundings:Non-Explosion Proof Surroundings: -40°C~ +55°C
    Explosion-Proof Surroundings: -20°C~ +55°C
    Relative Humidity:≤ 85%
    Atmospheric Pressure:86 ~ 106 kPa
    Power SupplyNon-Explosion Proof TypePulse type:+12 VDC ( the output current is 4 ~ 20mA)
    Current type:+24 VDC ( the output current is 4~ 20mA)
    Explosion-Proof TypeCurrent type:+24 VDC ( the output current is 4~20mA)
    Output SignalFrequency pulse signal 2~3000Hz, low level voltage ≤1V, high level voltage ≥ 6V
    Two-wire system 4 ~ 20mA signal (isolation output), load ≤ 500Ω.

    Measuring range of vortex flow meter MT100VX

    Measure range of vortex flow meter
    Diameter (mm)WaterGases in the Normal Temperature and Pressure
    Range of Standard Measurement (m3/h)Range of Standard Measurement (m3/h)
    252 ~ 168~60
    321.5~1514~100
    403~3018~180
    504~4030~300
    656~6050~500
    8013~13070~700
    10020~200100~1000
    12536~360150~1500
    15050~500200~2000
    200100~1000400~4000
    250150~1500600~6000
    300200~20001000~10000

    Installation cautions

    Pipes must be fully filled with liquids, it is essential that pipes remain fully filled at all times, other ise flow rate

    indications may be affected and measurement errorsmay be caused.


    Product View


    Installation Length


    Wafer Connection

    At your service

    Our principle is "Reputation from Services&Quality is the lifeline of enterprise", so besides our product, satisfactory

    services is our another competitive hand.


    Email: info@metery-tech.com, sales@meterytech.com
    -------------------------------------------------------------------------------
    Cellphone: +86 18841127006
    Skpye: meterytech
    LINE: meterytech
    Whatsapp: +86 18841127006
    Wechat: Kai123263788
    QQ: 123263788

    Metery Technology Inc

    --------------------------------------------------------

    www.meterytech.com



    To World, METERY is Just A Company, But to METERY, You Are The World...
