    zlp800 CE suspended wire rope platform / suspended cradle / lifting gondola / swing stage

    Ask Lasest Price
    Brand Name : Xinghe
    Certification : ISO CE
    Model Number : ZLP800
    Price : FOB Tianjin 1700~2500 USD/SET
    Delivery Time : 7~10 days after receiving the deposit
    Payment Terms : t/t l/c western union
    Supply Ability : 400sets/month
    • Product Details
    • Company Profile

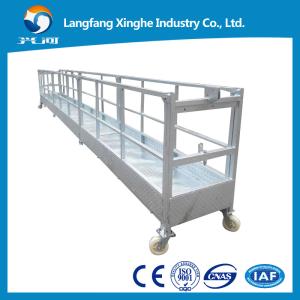

    zlp800 CE suspended wire rope platform / suspended cradle / lifting gondola / swing stage

    Suspended platform or working platform is used for exterior work during Construction and maintenance work post construction of High rise building. It is fast and cost effective replacement of conventional scaffolding. Simple and easy to install. It can be customized as per client / building requirement

    Item

    ZLP630

    ZLP800

    Rated load

    630kg

    800kg

    Lifting speed

    ~9.5m/min

    ~8.5m/min

    Platform size(L*W*H)

    (3*2000mm)*700mm*1180mm

    (3*2500mm)*700mm*1180mm

    Suspension Mechanism

    Rated exerted length of front beam

    1.1m~1.5m

    Terrain clearance of front beam

    1.45m~1.75m


    Hoist

    Type

    LTD63

    LTD80

    Motor

    Type

    Customization

    Customization

    Power

    1.5Kw

    2.0Kw

    Voltage

    380V

    380V

    Speed

    1400n/min

    1400n/min

    Braking torque

    15N.M

    15N.M

    Safety lock

    Type

    LS30

    Angle of tilted locking rope

    3°~8°

    Allowable impact force

    30KN

    Quality

    Suspension platform

    300kg

    370kg

    Hoist

    52kg*2

    56kg*2

    Safety lock

    5.5kg*2

    5.5kg*2

    Suspension mechanism

    320kg(not including counter weight)

    320kg(not including counter weight)

    Electricity box

    18kg

    18kg

    Compelete machine

    753kg

    831kg

    Counter weight

    1000kg(25kg*40pcs)

    1000kg(25kg*40pcs)

    Loading quantity

    20GP

    12sets

    40HQ

    30sets

    Wire rope

    Type

    4*31SW+FC-φ8.3 Broken pulling force≥53500N

    4*31SW+FC-φ8.6 Broken pulling force≥62500N

    Cable line

    Type

    3*2.5+2*1.5YC-5(one picec)

    Advantage:

    1. All of the components are produced by ourselves workers, the quality and the delivery time can be ensured.

    2. As a factory, the cost of the goods can be controlled very well, you can get a more competitive price.

    3. We can supply the on-line technical guidance, if your order quantity reaches our requirement, we can arrange our technical team to your country to setting equipment.
