    Pump Motor High Automation Stator Winding Lacing Machine Single Working Station

    Ask Lasest Price
    Brand Name : Nide
    Model Number : BXIW1-260/300
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 60 working days
    Supply Ability : 120 sets per year
    • Product Details
    • Company Profile

    Pump Motor High Automation Stator Winding Lacing Machine Single Working Station


    Pump motor high automation stator winding lacing machine , Single working station

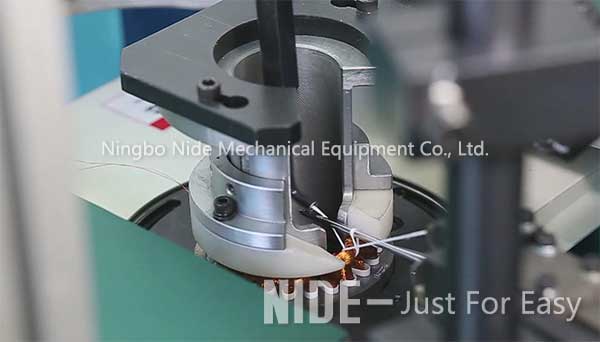

    This stator winding lacing machine is suitable for stator coil to do automatic lacing.Each lacing machine is PLC controlled with an inverter drive and can be fully programmed to suit different stator slot configurations. The lacing type, like slot by slot lacing, intercal lacing, and fancy lacing could be achieved by setting in human-machine interface. The coil lacing wokring process, such as single-needle and single-side automatic lacing; needle transpositioning, hooking, are all controlled by servo system. Stator is loaded on this coil lacing machine vertically.

    Applications:
    This automatic stator coil winding lacing machine is suitable for stator used in induction motor industry. This lacing manchine is especially applied to multi sizes, low output or more lead stator winding lacing.

    Machine speicification:

    Prouduction namestator coil lacing machine
    Stator IDφ35-φ120
    Statro ODless than 190mm
    Stator lamination height40-160mm
    Max winding height60MM
    Lacing speed0.8S/slot
    Lacing modeslot by lsot/interval slot/fancy lacing
    Power3800V 50-60HZ
    Air pressure>0.4mpa
    Weight450KG
    Dimension1000x600x1300


    Competitive advantages
    We have Overseas Service Center.
    Variety of application, easy operation.
    We could customize machine for our customer as per their requirement.
    The operation and tooling change process is easy.
    Machine is controlled by PLC. All the parameter can be set in the touch screen.
    It is suitable for stators with different model number and dimension.
    This machine is controlled by PLC. All the parameter could be set on the touch screen,
    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
