    High efficiency Motor stator winding inserting machine coil servo CCC Certificate


    High efficiency Motor stator winding inserting machine coil servo CCC Certificate


    Quick Detail:

    1. Model No.: QX1-150/160
    2. Automatically insert the winding into stator slot.
    3. This machine is used for induction motor stator.
    4. The winding/coil and wedge/top cover is inserted simultaneously.
    5. Simple operation, low noise, fast speed and high automaticity.
    6. PLC and touch screen control.

    Description:
    Nide's stator coil inserting machines are available in many different versions that can be individually equipped with several options.This series are economic machine for standard stators. The machines allow highest fill-factors and narrow slot openings. This is controlled by a precision servo motor so different wedge pattern configurations can be set up to control the amount of slot wedges and length of slot wedges fed into the magazine of the coil inserting machine.

    The coil inserting process is generally the most time consuming element in the manufacture of a stator for an electric motor. It is equally important that the coils are well protected during coil insertion process. In order to offer our customers the perfect solutions, Nide well constructs its machines, even the tooling, which is manufactured to an extremely high standard and well polished and treated to give perfect results.

    This type of stator coil inserting machine can insert coil and wedge or coil and wedge in the mid of slot into stator at a time; wedge feeding is to be done bt stepping motor,and coil and wedge inserting is by servo system; different parameter could be set in human-machine interface; the speed and feeding mode is acquirable according to different slot filling rate and different kind of wire;Every machine we supply gives the option to program for automatic slot wedge making. Different size stator production can be achieved by changing tooling.

    Specifications :

    Max stator O.D.160mm
    Stator I.D20~100mm
    Max stator stack length120mm
    Slot number range8~48 slots
    Max winding feeding rate80%
    Appropriate wireCopper wire/Aluminum wire
    Power source380V/50Hz
    Air source0.5-0.8MPa
    Machine productivity400pcs/ 8 hours
    Machine Dimension1800mm × 650mm × 1700 mm
    Weightabout 1000Kg


    Machine video link
    https://youtu.be/83uO0pT-tj4

    Application:
    This Stator coil inserting machines apply to micro induction motors such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.This machine is controlled by PLC. All the parameter could be set on the touch screen,

    Machine main function and characteristic
    l. The machine inserts coil and wedge simultaneously, coil insertion is controlled by servo motor system , and wedge insertion by variable frequency motor.
    2. It is controlled by HMI, and machine can diagnose breakdown automatically.
    3. This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
    4. The wedge feeding is by stepping motor. feeding length, cutting, forming, inserting slot number could be set.
    5. Both copper wire and aluminium wire are appliable.
    6. Production capacity ≤25s/set (exclude the man-hours for auxiliary work)
    7. This machine is controlled by PLC. All the parameter could be set on the touch screen,

    Information needed for stator winding inserting machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Wire connection drawing
    4. Stator application
    5 Required productivity
    6 Other technical requirement


    The insertion process

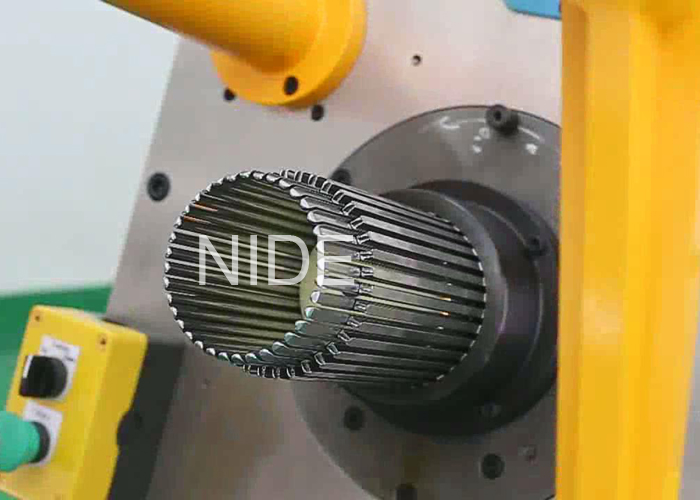

    Stator after inseting process by this coil winding inseter
