Stainless steel flanged NBR rubber expansion bellows joint
suppliers

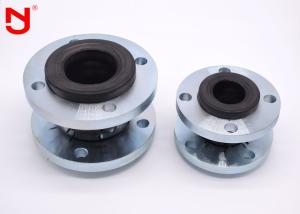

Rubber expansion joint is also called rubber bellows, rubber joint,
single sphere flexible connection, expansion joint bellows etc, it
is mainly consist of two pcs flange and one rubber sphere body,
flange is used for connection, rubber sphere body is flexible, it
can absorb the axial, horizontal and anular displacement, the
normal working pressure is 16 bars, normal working temperature is
-15~+90 celsius degree, the norminal size is from DN25-DN3000, the
nornal material of rubber is natural rubber, EPDM, Neoprene, NBR
and PTFE etc, the normal material of flange is carbon steel
galvanized, carbon steel painted, casting iron painted and
stainless steel etc, of course, if you have any special
requirements, pls let us know, we'll recommend you a good solution.
| GENERAL CHARACTRISTICS |
| Nominal Diameter | DN15-DN3000 |
| Working Pressure | PN6-PN25 |
| Working Temperature | -20℃-140℃ |
| Working Medium | Water,Oil,Acid,Alkali |
Main data of rubber expansion joint |
| | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
To select the proper piping expansion joint, it is critical to
understand the media compatibility with the materials selected,
full temperature, pressure and vacuum ranges, movements required,
and dimensions between pipe flanges. With this information,
JINGNING application engineers can assist in determining the ideal
expansion joint for any application.
Do you know how is a high quality rubber expansion joint made?Let's
see with JINGNING.
FAQ
Q1:What`s the rubber material Q1:for Epdm flexible flange couplings
rubber joint in usa?
A1: We have EPDM.CR,NBR and so on .you can choose your needed
deponding on the work enviroment and media.
Q2: Is the flange galvaized for Epdm flexible flange couplings
rubber joint in usa?
A2: Yes.the colour have the white,red,blue,grey ,yellow and others
deponding on your needed. the carbon steel flange not painting
anticorrosive paint must be galvanized in order to avoid rusting.
Usually,we choose electronic galvanized or hot dip galvanized .
Q3: Do you attend the Fair ?
A3:Yes ,you can meet us ,then we can have a talk with you well .
You can meet us at your office ,because we visit you every year.
Q4: Can i get a sample?
A4: Of cause you can . For samll order .Express wll be best. And
for bulk order,sea ship way is best but take much time.For urgent
orders.we suggest via air to airport plus our ship partner send to
your door.
Q5: What is the MOQ of Epdm flexible flange couplings rubber joint
in usa?
A5: 1 Piece, You can also get it as a sample to test our product
quality ,then you can purchase order to us .
