    SC Standard Single Mode Fiber Media Converter RS232/RS422/RS485 Serial To Fiber

    Ask Lasest Price
    Brand Name : E-link
    Model Number : LNK-277 Series
    Certification : CE/FCC/Rohs
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 10000 per Month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

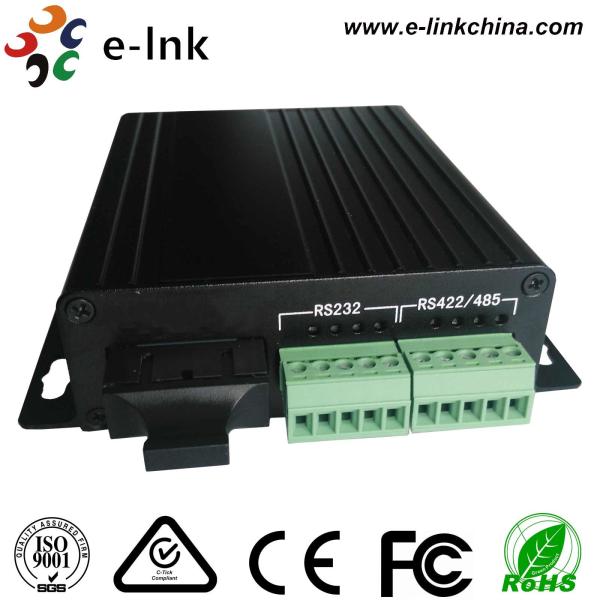

    SC Standard Single Mode Fiber Media Converter RS232/RS422/RS485 Serial To Fiber

    Model:LNK-277 Series


    Overview

    LNK-277 Series is an industrial grade RS-232 / RS-422/ RS-485 to fiber optic converter which converts a standard RS-232 / RS-422 / RS-485 transceiver to a fiber optic link as to extend the serial signal up to 2Km on multimode fiber and 80Km on single mode fiber. This unit is enclosed in an industrial wall mount compact size rugged steel case.


    Features

    • Plug-and-play, hot pluggable
    • Extends RS-232 / RS-422 / RS-485 transmission up to 2Km on MMF, 80Km on SMF
    • Industrial Wall Mount Compact size rugged case
    • Protects against electrical interference and chemical corrosion
    • Built-in surge and static protection
    • Diagnostic and unit indicator LEDs
    • Wide temperature range

    Application


    Technical Indexes

    StandardEIA /TIA RS232, RS-422, RS-485
    Fiber ConnectorSC standard, ST/FC optional
    Fiber Distance50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
    Serial ConnectorRS-232, RS-422, RS-485: phoenix terminal
    Serial DistanceRS232: 15 meters, RS-422, RS-485: 1500 meters
    Rate0-120Kbps
    Baud Rate300 Baud to 115,200 Baud
    RS-232IN, OUT, GND
    RS-485D+, D-, GND
    RS-422R+, R-, T+, T-, GND
    Power Supply

    110V ~ 240VAC to 5VDC with external power adapter

    110V~240VAC to 12-48VDC with External power adapter

    Power rate5-40V, 2W
    Static protection15KV electric static discharge (ESD) protection
    Surge protection1500W/sec surge protection
    Operation Temperature-25°C to +70°C
    Storage Temperature-40°C to +85°C
    Storage Humidity5%~90% non-condescending
    Dimensions110(L)*104(W)*28(H) mm
    Weight0.3kg/pcs
