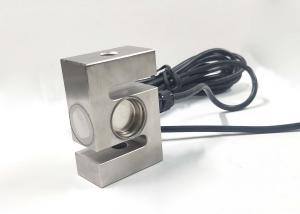

    High Precision S Beam Load Cell / Tension Compression Load Cell

    High Precision S Beam Load Cell / Tension Compression Load Cell


    S beam Load Cells, Tension and Compression Weighing
    Model: SS-05
    Capacity: 500KG, 1000KG


    Features:
    S shape Load Cell, High Capacity range from 500KG to 1000KG
    Alloy Steel Structure, Good performance, High accuracy and low costs,
    Laser Sealed, Water Proof to IP66,

    Applications: Crane scale, hopper scale and other electronic weighing test.

    Dimensions: (mm)

    SPECIFICATION:
    Precision:C2
    Rated Output:3.0mv±0.003
    Creep(%F.S/30min):±0.02
    Zero balance(%F.S):±1.0
    Input resistance:350±5
    Output resistance:350±5
    Insulation resistance:≥5000(100VDC)
    Temp.effect on span(%F.S/10℃):±0.017
    Temp.effect on zero(%F.S/10℃):±0.02
    Use temp.range(℃ ):-20~+55
    Excitation voltage(V):9~12(DC)
    Safety overload (%F.S)150%
    Ultimate overload (%F.S)200%
    Defend gradeIP66
    Cable Length:3 meters -10 meters
