Twin Screw Extruder Big Capacity Side Feeder Machine For Talc
Powder
Production description:
Screw Diameter(mm) | 62.8 |
 |
L/D | 8.75:1 |
Power(kw) | 5.5 |
Type of drive | SEW MOTOR |
Sections of Barrel | 2 |
Center Distance(mm) | 48 |
Output Screw Speed(rpm) | 305 |
Load Capacity (kg/h) | ≦600kg/h |
Dimension | 1300×650×1230(mm)(Adjustable height) |

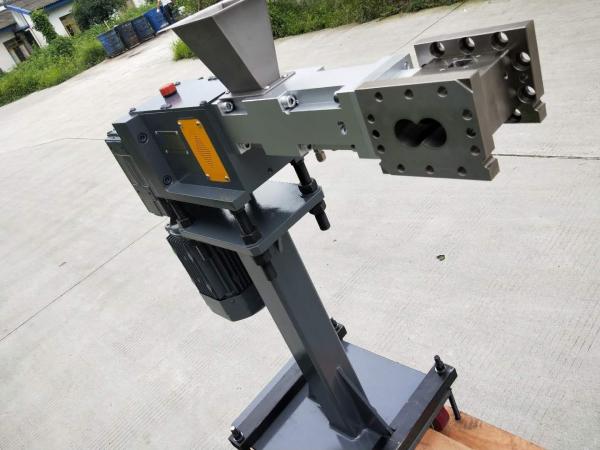

The Side Feeder is mainly including the Screw,Gearbox,Spline
Housing,Stuffing Box,Hopper and Bracket.
Mark | Part Name | Qty (Pcs) | Function |
| 1 | SEW Motor | 1 | Driving System |
| 2 | Gearbox Section | 1 | Transmission System |
| 3 | Hopper | 1 | Feeding |
| 4 | Screw Section | 2 | Mixing and conveying the filler |
| 5 | Barrel Section | 2 | Carry the screw shaft and melt the material |
| 6 | Bracket | 2 | Supporting the Side Feeder |
JOINER employs segmented screws with a self-wiping profile to provide
optimum feeding properties for a wide range of raw materials such
as fillers,fiberglass, talcum powder,calcium carbonate and most
inorganic materials.
Side feeders are used for the following reasons
Reduction of wear costs in the melting section of the main screw
and barrels
More gentle processing of fillers
Increase in throughput
Increase in quality through the enough fixing
Lower the cost
Our side feeders features
Very durable thanks to its durable integral liner inside barrels
The tightly intermeshing co-rotating segments with various pitch
have an improved conveying behaviour and ensure the precision (long
GF±5%,short GF±2%) and output (caco3 550Kg/h,GF 500Kg/h)
More human centered design,ease of operation.for example the glass
window,on the splined sleeve, flat screw head ,the adjustable
support and the drawer for clean up the leak
Can designed based on user requests.
The application of our side feeder
Our side feeders are available, both matched to almost every type
of twin screw extruder.Now it has gradually replaced all the
Nanjing Side feeders used for foreign customer. And there are
nearly 50 sets used by Shanghai and Guangzhou Kingfa. It works
successfully, and our clients are satisfied.
Through our continuous improvement, we have produced three
generations of side feeder .
Packaging Delivery
Packaging Details: Wooden case, Sea-worthy or export standard.
Port: SHENZHEN
Lead time: 40-50 days after order confirmation.
