HS6103C Horizontal(Front Load) Single Phase Static Meter Test Bench(1 loop,5 Position)

    Buy cheap HS6103C Horizontal(Front Load) Single Phase Static Meter Test Bench(1 loop,5 Position) from wholesalers

    Buy cheap HS6103C Horizontal(Front Load) Single Phase Static Meter Test Bench(1 loop,5 Position) from wholesalers
    • Buy cheap HS6103C Horizontal(Front Load) Single Phase Static Meter Test Bench(1 loop,5 Position) from wholesalers

    HS6103C Horizontal(Front Load) Single Phase Static Meter Test Bench(1 loop,5 Position)

    Ask Lasest Price
    Brand Name : SHENGDI TECHNOLOGY
    Certification : GS,CNAS
    Model Number : HS6103C
    Price : USD$1~100000/SET
    Delivery Time : 35~45days
    Payment Terms : TT,LC
    Supply Ability : 3000 sets/Years
    • Product Details
    • Company Profile

    HS6103C Horizontal(Front Load) Single Phase Static Meter Test Bench(1 loop,5 Position)

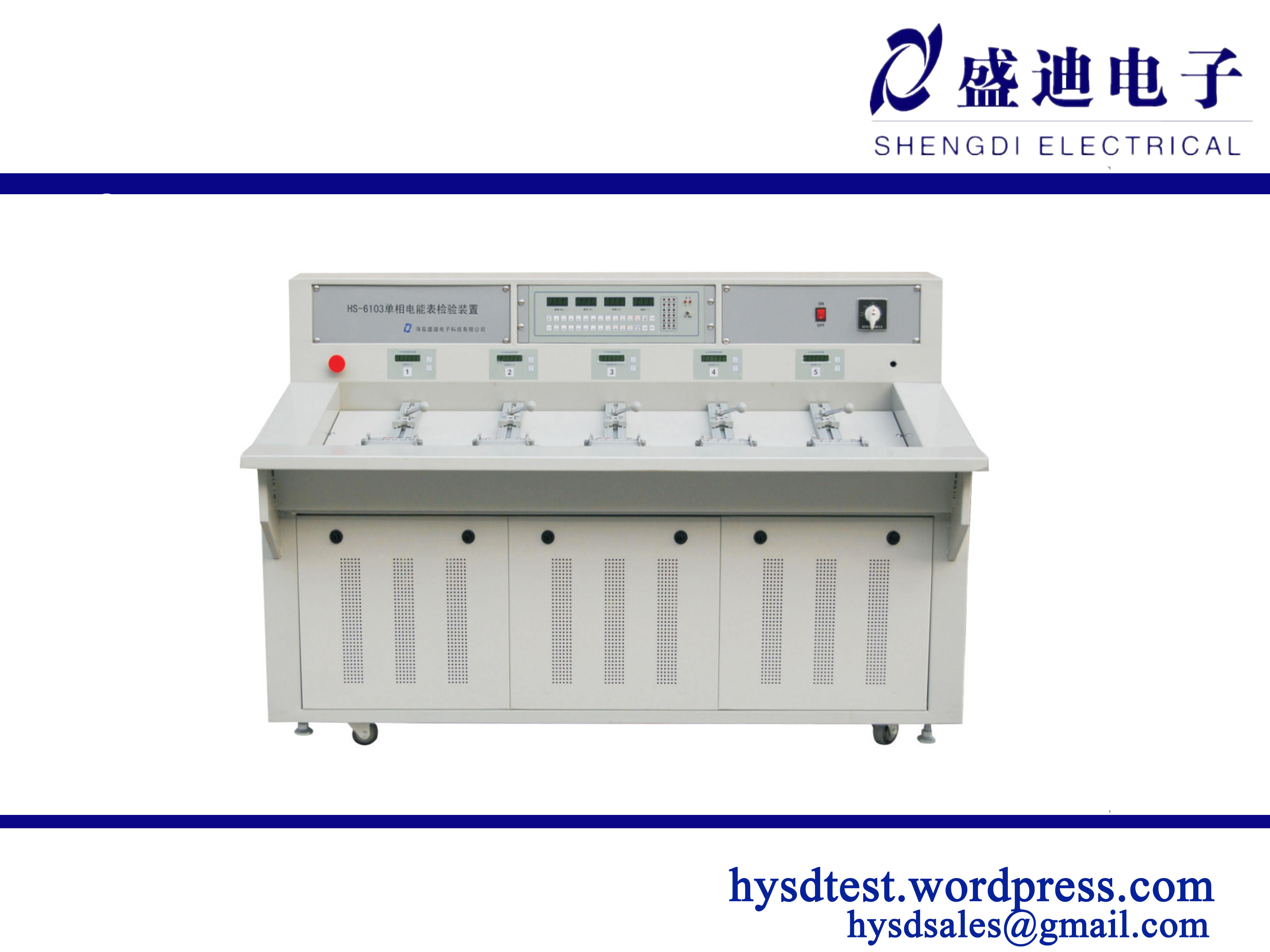

    HS-6103C Single Phase Energy Meter Test Bench

    1. Accuracy class:0.1/0.2
    2. Voltage range: 220V(240V option),output range:0~125%,resolution:0.01%full range
    3.Current range:0-100A(200A also available),0~120%;adjustment fineness:0.0001A(min)
    4.Phase shift:0-360 ; ;adjustment fineness:0.1;
    5.Frequency:45Hz-65Hz;adjustment fineness:0.1Hz
    6.Output waveform distortion:Both voltage and current〈0.5%
    7.Output voltage,current,and power stability:〈0.05%/3min
    8.input power supply:220VAC,+/-10%,50Hz;Max.power consumption:500VA
    9.Outer Dimensions:1600*800*1100mm
