PLC Omron Power 58KW Rubber Injection Moulding Machine 400 Tons High Performance

    Buy cheap PLC Omron Power 58KW Rubber Injection Moulding Machine 400 Tons High Performance from wholesalers

    Buy cheap PLC Omron Power 58KW Rubber Injection Moulding Machine 400 Tons High Performance from wholesalers
    • Buy cheap PLC Omron Power 58KW Rubber Injection Moulding Machine 400 Tons High Performance from wholesalers
    • Buy cheap PLC Omron Power 58KW Rubber Injection Moulding Machine 400 Tons High Performance from wholesalers

    PLC Omron Power 58KW Rubber Injection Moulding Machine 400 Tons High Performance

    Ask Lasest Price
    Brand Name : TuoWei
    Model Number : TW-L-400T
    Price : USD55500-57000/stations
    Payment Terms : T/T
    Supply Ability : 60-65days
    Delivery Time : 60-65work days
    • Product Details
    • Company Profile

    PLC Omron Power 58KW Rubber Injection Moulding Machine 400 Tons High Performance


    PLC Omron Power 58KW Rubber Injection Moulding Machine 400 Tons High Performance

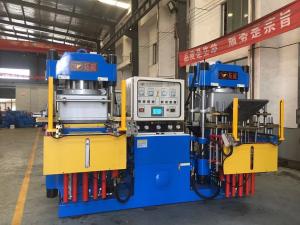

    Machine characteristics
    Stationary four cylinders balancing vertical injection structure, hyperstatic injection force.
    Optimized shot feeding rod greatly reduces the rubber leakage and is convenient and fast for maintenance

    and rubberreplacement.
    “Innovative shot feeding tube constant temperature system plus ultrashort nozzle make very few remaining

    materials and minimum pressure loss ”.
    Specification under 500T adopts the international popular and advanced FIFO first-in first-out injection way .
    Totally-enclosed safety shield and grating, higher equipment operation safety grade.
    Hot plate heating zone control makes temperature more even.
    Bigger table board design.
    More automatic functions may be selected.


    Applicable products:Various rubber products

    TypeTWL-400TTWL-500T
    Clapping force(TON)400500
    Stroke(MM)600600
    Working Plate Size(MM)700×800800×850
    Dimeter of cyhnder(MM)500560
    Max plate spacie(MM)700700
    Min Mould Height(MM)100100
    Crane travel(MM)250250
    Joe trabel(MM)250250
    injection unit
    Volume injection(CC)40005000
    Injection pressure(Mpa)205205
    Screw diametre(MM)5555
    Nozzle aperture(MM)78
    OTHERS
    System pressure (Mpa)2121
    Horse powet(HP)2530
    Heater power(KW)2731
    Total power(KW)5258
    Gross weight(KG)1170014700
    Machine size(MM)2900*1900*45003000*2000*4500
