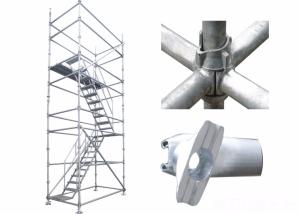

Cuplock scaffolding system use for building bridges and engineering
construction
1. One set of Cuplock Scaffolding usually include 4 standards and 8
ledgers.
2. Cuplock Scaffolding is easy and quick to install and strip.which
can save your time.
3. Cuplock Scaffolding provides high loading capacity while its
structure is quite flexible.
4. All the Cuplock Scaffolding parts are dealt with CO2 arc
welding, the surface is galvanized. As a result, it is more durable
and has a longer working life
5.There is small lock pin on Cuplock verticals to restrict the cups
from moving out. so you don't worry to lost ancillaries
1.Standard
| Item Number | Length(mm) | Diameter(mm) | Thickness(mm) |
| SSC-C1-3000 | 3000 | 48.3 | 3.2 |
| SSC-C1-2500 | 2500 | 48.3 | 3.2 |
| SSC-C1-2000 | 2000 | 48.3 | 3.2 |
| SSC-C1-1500 | 1500 | 48.3 | 3.2 |
| SSC-C1-1000 | 1000 | 48.3 | 3.2 |
2.Ledger
| Item Number | Length(mm) | Diameter(mm) | Thickness(mm) |
| SSC-C2-2500 | 2500 | 48.3 | 3 |
| SSC-C2-1800 | 1800 | 48.3 | 3 |
| SSC-C2-1600 | 1600 | 48.3 | 3 |
| SSC-C2-1500 | 1500 | 48.3 | 3 |
| SSC-C2-1300 | 1300 | 48.3 | 3 |
| SSC-C2-1250 | 1250 | 48.3 | 3 |
| SSC-C2-1200 | 1200 | 48.3 | 3 |
| SSC-C2-1000 | 1000 | 48.3 | 3 |
| SSC-C2-900 | 900 | 48.3 | 3 |
| SSC-C2-600 | 600 | 48.3 | 3 |
3.Brace
| Item Number | Length(mm) | Diameter(mm) | Thickness(mm) |
| SSC-C3-1800*1500 | 1800*1500 | 48.3 | 2.5 |
| SSC-C3-1800*2000 | 1800*2000 | 48.3 | 2.5 |
| SSC-C3-2500*1500 | 2500*1500 | 48.3 | 2.5 |
| SSC-C3-2500*2000 | 2500*2000 | 48.3 | 2.5 |
1. We are manufacturer with more than 17 years experiences.
2. We are certified by SGS
3. We have 3 factories which covers an area of 30000sqm and its
daily output is more than 1000 tons, so we can assure you the
punctual delivery.
Our main products include all kinds of scaffolding system,
scaffolding accessories,formwork system, concrete machine, and etc.
PRODUCT ADVANTAGES
(1) Easy assembly, time and labor saving.
(2) High load-carrying capacity.
(3) Adaptable to various construction projects.
(4) All elements safely connected.
(5)Highly durable.
COMPANY INTRODUCTION
JET SCAFFOLDING which is one of the largest Scaffolding ,
manufacturing and trading group company in China, our products
follow SGS, TUV, EN39, EN71, we are able to best serve our
customers by providing a one-stop shopping & service company,
scaffolding system, frame systems, galvanized steel tube, steel
prop and the accessories are all available in our group.
