Powder Moisture Material Mixing Blending Machine With 150L Volume
Tank
Simple Instruction of Mixing Machine
Groove Type mixer is widely used to mix powder or moisture
materials and make the different proportion of main and
supplementary materials mixed evenly.
All the parts touched with materials are made of stainless steel.
The clearance between blades and vessel body is small so that there
is no dead corner during mixing.
Sealed devices are installed at the two ends of mixing shaft to
prevent the leakage of materials. It is widely used in the
industries of pharmacy, chemical, food, etc.
Main Technical Data of Mixing Machine
| Volume (L) | 150 |
| Power of agitation motor (kw) | 3 |
| Rotation speed of agitation (r/min) | 24 |
| Power of Inclined motor (kw) | 0.55 |
| Input(kgs) | 70-80 |
| Weight (kg) | 350 |
| Overall dimensions (mm) | 1360×540×1100 |
Feature of Mixing Machine
1. Wide range of use: The equipment can meet the production of dry
mortar with different performance requirements. Such as: masonry
mortar, plastering mortar, polymer mortar required for thermal
insulation system, polystyrene particle moisturizing mortar and
other dry powder mortar.
2. Good dispersion: The equipment completely solves the problems of
low uniformity and dead angle caused by different specific gravity
of materials. This equipment adopts the mixing structure of
five-axis with flying knife mortar, which can effectively disperse
various short fibers.
3. Simple and convenient to use: the equipment has a small
footprint, simple operation, low energy consumption, and can
produce 5-8 tons per hour.
4. Small investment: The equipment has obvious price advantage.
Small investment and quick results.
5. Long service life: The vulnerable parts of the equipment are all
made of high-strength wear-resistant steel. It has the
characteristics of long service life.

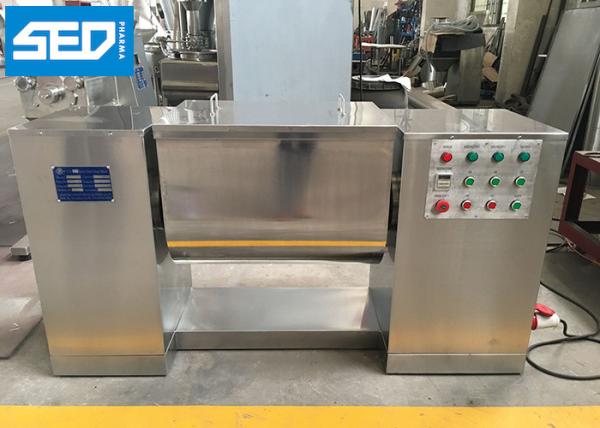

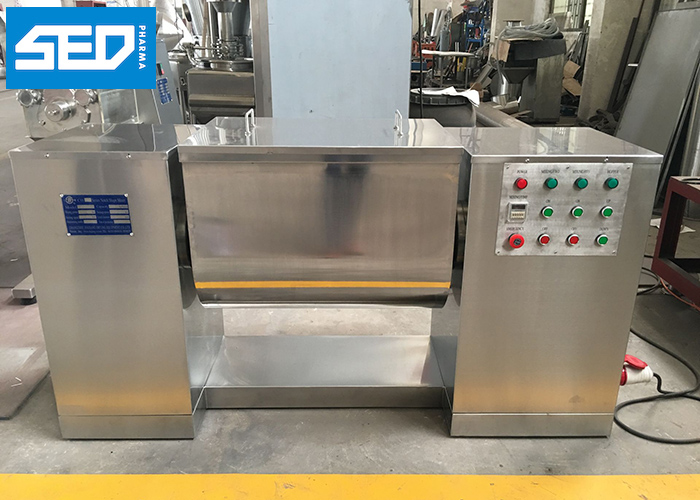

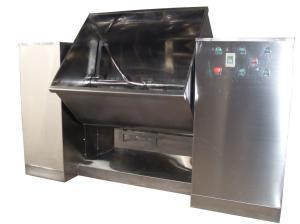

Product Show of Mixing Machine
Application of Mixing Machine
