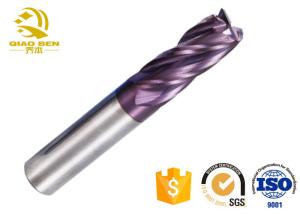

Chamfer End Mill Cutter For Metal 90 Degree Chamfering Metal With
Handle Tool Cutter
F-ED-001 end mill Features:
1. Suitable for steels & cast iron (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance
and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil
mist, water, oil, air cooling.
Using multifunctional superfine grain tungsten steel material has
better wear resistance and strength to belong to high hardness,
high speed milling cutter, cutting edge passivation treatment not
only makes the blade intensity increase tool life, also can make in
the later than no passivation cutting tool machining more smooth
and bright, the handle end chamfering processing, make the clamping
more easily, also reduce the cutter wear and tear of the fixture,
ALTIN high aluminum titanium coating process so as to improve the
machining efficiency, can increase the tool life under the same
cutting speed, unique chip groove shape, even in the groove and in
cavity type processing can show the excellent performance,Sharp
cutting edge and large screw Angle design effectively prevent the
generation of chip.

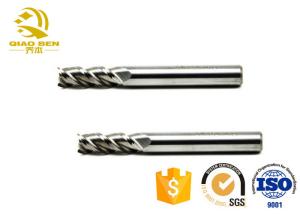

Tungsten Carbide Flat Endmill, Square End Mill Cutting Tools For
Metal(Standard Type) |
|
|
| Machining Range:AL5052,AL6063,AL6061,AL7075 |
| | | | | |
| EDP NO. | Diameter | Flute Length | Flute | O.AL | Shank Dia |
| 2102010581 | 1.0 | 3 | 4 | 50 | 4 |
| 2102010756 | 1.5 | 4.5 | 4 | 50 | 4 |
| 2102010580 | 2.0 | 6 | 4 | 50 | 4 |
| 2113010429 | 2.5 | 7.5 | 4 | 50 | 4 |
| 2102010384 | 3.0 | 9 | 4 | 50 | 4 |
| 2102010595 | 4.0 | 12 | 4 | 50 | 4 |
| 2113010430 | 5.0 | 15 | 4 | 50 | 6 |
| 2113010431 | 6.0 | 18 | 4 | 50 | 6 |
| 2113010432 | 8.0 | 24 | 4 | 60 | 8 |
| 2113010433 | 10.0 | 30 | 4 | 75 | 10 |
| 2113010434 | 12.0 | 36 | 4 | 75 | 12 |
chamfer mill Features:
1. Suitable for Aluminum alloy (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance
and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil
mist, water, oil, air cooling.
End Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger
than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany,
Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
Super raw material
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
Grain Size:0.7um
Co:10 %
Flexural strength: 3320N/mm2 | Grain Size:0.6um
Co:10 %
Flexural strength: 4000N/mm2 | Grain Size:0.5um
Co:12 %
Flexural strength: 4300N/mm2 | Grain Size:0.5um
Co:10 %
Flexural strength: 4300N/mm2 |
Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN“brand tools for
gurantee the quality.
We also trading related tools for customers because we are in these
field over 10 years, we are very familiar Chinese market tools. we
usually help our customer choose the best suitable related tools
for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need
about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory
price and fast delivery.
Our advantage:
- 1. 10 years experience in carbide roll and cutting tool
manufacturing
- 2. From row material to tool produdtion.
- 3. World top level prodution equipment and rich experience team
ATTACTION:
- 1.Make sure work piece and machine are stable and use a precision
holder.
- 2.Please adjust the speed,feed and cutting depth according to
actual cutting conditions.
- 3.The milling conditions are for an end mill where the tool
overhang length is less than 4*D(mill diameter). When the tool
overhang length is longer, please adjust the speed,feed and cutting
depth.
