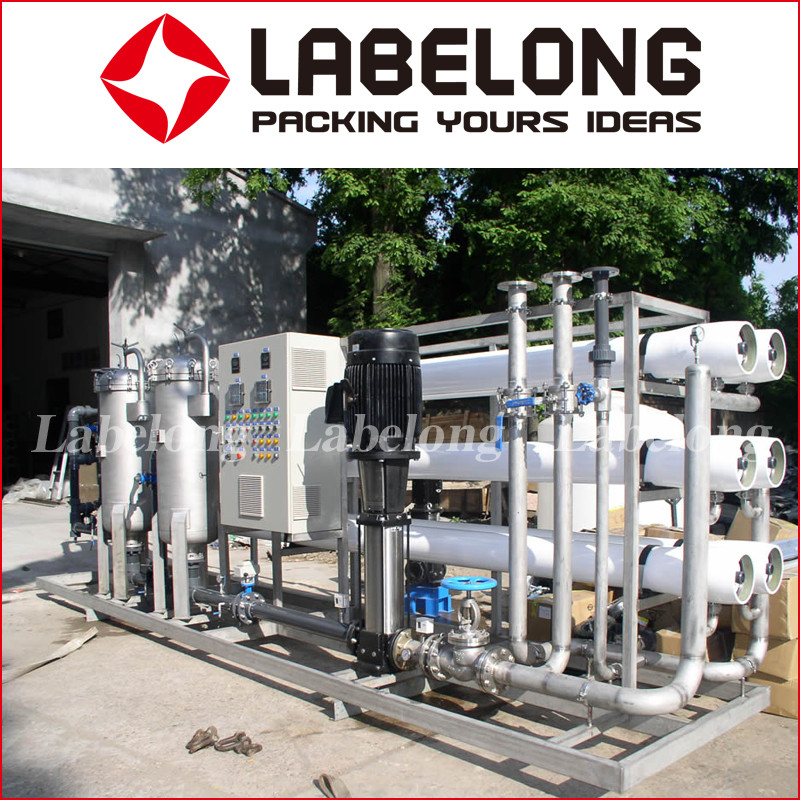

Industrial RO System Stainless Steel Reverse
Osmosis Water Purifier
General Description
Water treatment is equipped for pure water, mineral water, and
water used in beverage drink. It contains RO, natrium filter, ultra
filter, activated carbon filter, ion exchanger, ozone processor
etc.
It is applied for the production of pure water, mineral water,
beverage's product water and process water. It is mainly composed
of the following equipments: Pre-treatment system (multi-medium
filter, active carbon filter, ion exchange, ), membrane separation
system (Ultra filtration, nanometer filter, RO water treatment
system, 1stage or 2 stage), sterilization system (UV sterilizer,
ozone sterilizer) and so on.
1.0 Water feeding pump
Requested access to the system's raw water has a stable flow and
pressure, its purpose is to prevent water fluctuations have an
impact on the system operation to ensure the stability of the
system into the water.
1.1 First stage pretreatment. (Sand filter)
The use of multi-medium quartz sand filters, main purpose is to
remove the water contains sediment, manganese, rust, colloid
material, mechanical impurities, suspended solids and other
particles in the above 20UM of substances hazardous to health. The
effluent turbidity is less than 0.5NTU, CODMN less than 1.5mg / L,
iron content of less than 0.05mg / L, SDI less than or equal to 5.
Water filter is a kind of "physical - chemical" process, the water
through granular materials when isolated filter water impurities
and colloidal suspensions.
1.2 Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water,
smell, a large number of chemical and biological organisms,
reducing the residual value of water and pesticide pollution and
other harmful pollutants. The structure of activated carbon filters
and quartz sand filters, the difference is placed inside the strong
adsorption capacity of activated carbon for removal by the quartz
sand filter without the filter out organic material, adsorption of
residual chlorine in the water, using water more than less than or
equal to chlorine 0.1ML/M3, SDI less than or equal to 4, are strong
oxidants chlorine, there are various types of membrane damage, in
particular, reverse osmosis membranes are more sensitive to
chlorine.
In addition, the activation process, the surface of activated
carbon to form non-crystalline parts of some oxygen-containing
functional groups, these functional groups can have a chemical
adsorption of activated carbon catalytic oxidation of bad news, to
restore the performance, can effectively remove a number of metal
ions in water.
Application:
Pure drink water, mineral water
Water for food and beverage production
Water for boiler, treatment of the industrial waste water
Water for medical use, high purity water for electronics industry
Water treatment Flowchart
Flocculant doser Antiscale doser raw water tank- Pressurized pump-
Multimedia filter - Active carbon filter- Precision filter-pH
adjust safety filter-1st high pressure pump-1stage RO -Middle water
tank -2ND high pressure pump- water recycle Ozone generator 2ND
stage RO - Pure water tank-Pressurized pump- Oxidation tower-
Terminal pump- Ti rod filter- Filling.
Equipment Composition
1 Raw Water Tank
2 Raw Water Pump
3 Mechanical Filter
4 Active Carbon Filter
5 Softener
6 Precision Filter
7 2-stage RO System
8 Central Water Tank
9 Pump
10 Oxidation Tower
11 Ozonizer
12 Pure Water Tank
13 Pump
14 Ti-rod Filter
High Quality RO Water treatment plant Parameter:
| Model | Volume of output water | External dimension | Power |
| RO-500 | 0.5T/h(25°C) | 1500*850*1800 | 1.5KW |
| RO-750 | 0.75T/h(25°C) | 1650*900*1800 | 1.5KW |
| RO-1000 | 1T/h(25°C) | 1500*1000*1800 | 1.5KW |
| RO-2000 | 2T/h(25°C) | 2500*650*1700 | 3KW |
| RO-3000 | 3 T/h(25°C) | 3500*850*1700 | 4KW |
| RO-4000 | 4 T/h(25°C) | 3500*850*1700 | 5KW |
| RO-5000 | 5T/h(25°C) | 3500*1000*1700 | 5.5 KW |
| RO-6000 | 6T/h(25°C) | 3500*1000*1700 | 7KW |
| RO-7000 | 7T/h(25°C) | 4500*1000*1800 | 9KW |
