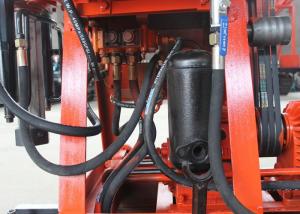

    Multi Purpose Investigation Geological Drilling Rig Machine ST-100 Track Mounted Drill Rig

    Ask Lasest Price
    Brand Name : JINZHOU SHITAN
    Model Number : ST-100
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 sets per year
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Multi Purpose Investigation Geological Drilling Rig Machine ST-100 Track Mounted Drill Rig

    Factory Direct Geological Drilling Rig Machine ST-100 for Multi-purpose Investigation


    Application of Geological Drilling Rig Machine:


    The Shitan series comprises a variety of hydraulic drilling rigs covering a vast spectrum of geotechnical works and ideally suitable also for water well drilling.
    We use highly mobile surface geotechnical core drill rigs configured as crawler mounted. Our clients have already utilized our surface rigs for applications such as:
    • Mineral exploration
    • Multi-Purpose Drilling
    • Percussive / DTH Drilling
    • Feasibility analysis
    • Installing Piezometers
    • Instrumentation installation
    • Oriented Core
    • Production & Monitor wells


    Main Parameter:


    ST-100 Rig Technical Specifications
    Main technical parametersPump
    Drilling depth(m)100mTypeGear pumps
    Hole diameter110mmModelYBC-12/80
    The final hole diameter75mmRated pressure8Mpa
    Rod diameter42-50mmFlow8ml/r
    Borehole inclination90°— 75°Rated speed1500r/min
    Rig Dimensions1640mm×1030mm×1440mm
    (L×B×H)
    Rig weight(Except the power machine500kgMotor and diesel
    GyratortypeZSⅡ00
    vertical speed142,285,570r/minRated Power11KW
    vertical stroke450mmRated speed2200r/min
    vertical load up the maximum speed3m/minElectric motor
    vertical load down the maximum speed4m/mintypeY160M-4
    The maximum vertical force feed15KNRated Power11KW
    The maximum vertical lifting force25KNRated speed1460r/min
    Pump
    WinchesTypeHorizontal single-cylinder double-acting
    The maximum lifting capacity ( a single rope speed )10KNThe maximum displacement99(77)L/min
    Reel speed55,110,220r/minThe maximum allowable pressure1.2Mpa
    Roll peripheral speed0.42,0..84,1.68m/sWorking Pressure0.7Mpa
    Reel diameter145mmThe number of strokes120(96)min
    Rope diameter9.3mmLiner diameter80mm
    Rope capacity27mPiston stroke100mm
    Brake diameter230mm
    Gate width50mm
