Low Failure Rate Horizontal Directional Drilling Machine S280 28Ton horizontal directional drilling machine

Name: Low Failure Rate Horizontal Directional Drilling Machine S280 28Ton horizontal directional drilling machine
Brand: STETON
Price: 1 USD

Ask Lasest Price
Brand Name :	STETON
Model Number :	S280
Certification :	ISO9001
Supply Ability :	10 UNITS PER MONTH

Add to Cart

Product Details
Company Profile

Low Failure Rate Horizontal Directional Drilling Machine S280 28Ton horizontal directional drilling machine

Low Failure Rate Horizontal Directional Drilling Machine S280 28Ton horizontal directional drilling machine
I KEY point:

Mini machine Body;

Fast travelling and tracking speed;

Powerfull.

II Features:

Equipped with Cummins 132kw engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in city area.
Power head thrust and rotation adopts cycloid motor from Eaton, with large torsion, stable performance. Rotation have two speed , drilling faster and more torque; Thrust have 3 speed, let the work finished more faster.
American style surface, looks so powerful.
Simple electric circuit design, low failure rate, convenient maintenance.
Equipped with φ60×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.
Mud flow control system, can depends customer project save water.
Auto anchoring system can be choose separate.

III Specifications:

Engine Power	KW	132/2200
Max Thrust force	KN	280
Max Pullback force	KN	280
Max Torque	N.M	10000
Max Rotary speed	Rpm	120
Max carriage speed	m/min	35
Max Mud pump flow	L/min	280
Max Mud pressure	Mpa	8±0.5
Main machine size	mm	6100x1800x1700
Weight	T	10
Diameter of drilling rod	mm	φ73
Length of drilling rod	m	3
Max diameter of pullback pipe	mm	φ150 - φ700
Max construction length	m	300
Incidence Angle	°	10～22
Climbing angle	°	14

Product Tags:

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: NANJING STETON ENGINEERING MACHINERY CO.,LTD
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

Low Failure Rate Horizontal Directional Drilling Machine S280 28Ton horizontal directional drilling machine

Low Failure Rate Horizontal Directional Drilling Machine S280 28Ton horizontal directional drilling machine

Low Failure Rate Horizontal Directional Drilling Machine S280 28Ton horizontal directional drilling machine

horizontal drilling machine

horizontal drilling equipment

Low Failure Rate Horizontal Directional Drilling Machine S280 28Ton horizontal directional drilling machine

You May Like

S350 35Ton 153 KW Horizontal Directional Drilling Machine For Pipe Laying

Pipe Pulling No Dig Directional Boring Equipment For Urban Water Supply

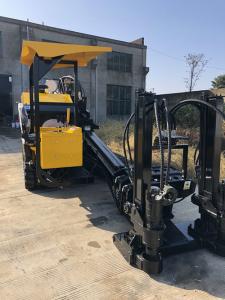

Lower Fuel Consumption Hdd Drilling Machine , 3 Speed Mode Directional Boring Machine

Stable Performance Horizontal Drilling Machine , Low Noise Horizontal Boring Machine

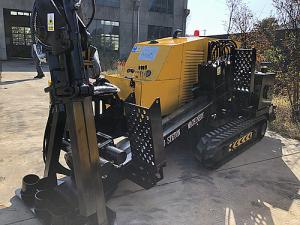

Heavy Duty Horizontal Directional Drilling Machine With Yanma 46.3kw Engine
