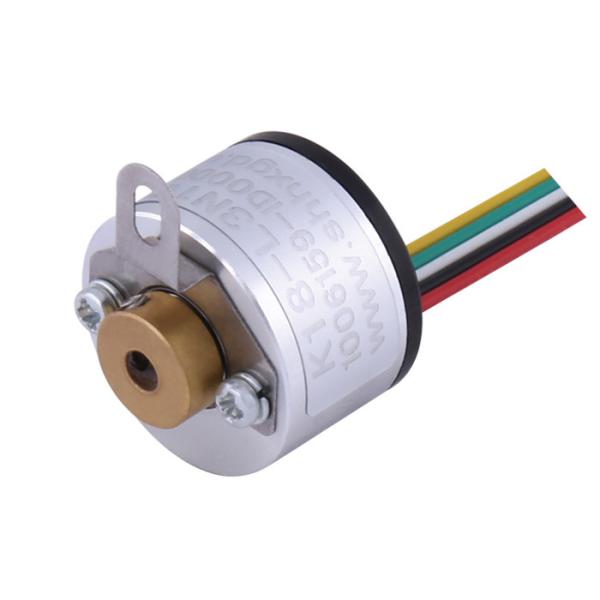

K18 miniature rotary encoder blind hole shaft 2.5mm AB phase NPN
output hollow encoder
Encoder Catalogue
If you have already selected the encoder model you are going to
order, please email us directly or contact online service right now
to get the latest catalogue.
But if you are still have any doubts on choosing a right encoder
model number, you are also free to contact us to get the related
catalogue.
Feather of K18 encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 18mm |
| Thickness | 15.3mm |
| Installation dimension | R11mm, spring plate 18T22 |
| Hollow shaft diameter | 2.5mm |
| Resolution | 250;256;360;400;500;512；720；800；1000;1024；1440;1600 |
| Output phase | Phase A,B,Z |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| Cable out from back |
| Output mode | Collector open circuit output(NPN &PNP) |
| Protection grade | IP50 |
| Shaft Material | Stainless steel |
| Shell Material | aluminum alloy |
| Cable length | 150mm |
| Certification | CE |
| package | Carton box |
| Net weight | About 20g (with package) |
Our Service
- Quick response once received customer’s quotation query
- Professional engineer team, to solve your problems at any time
- Strictly inspection before shipment
- Various encoder models to be selected
- Short lead time
- High quality standard
About Encoder Vibration
Vibration acting on an encoder always cause wrong pulse easily.
So we have to pay more attention to encoder working place.
The more pulse per round, the narrower groovy spacing of grating,
ore effect to encoder by vibration, when motor speed is low or even
stopped, vibration acting on encoder shaft or encoder shell would
cause grating vibration, in this way, encoder might show wrong
pulse signal.
Why choose us
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.
Applications
- Petrochemical industry
- Pharmaceutical industry
- Food industry
- Aviation and aerospace industry
- Architectural decoration industry
- Oil and gas industry
- FFS machine
- VFFS machine
- Servo motor
- Drawing machine
- VFD
- Inverter
- Variable frequency driver
- Embroidery machine
- Elevator
- Printing machinery
- Projector
- Injection molding machine
- Disc shoe machine,
- Textile dyeing
