R32 Drill Bit With High Grade YK05 Tungsten Carbide Inserts
Thread: R32
Color: Green or Based on Customer requirements
Type: R32 Drill Bit
Widely used drifting and tunneling
R32 Thread Button Bit Specification
| R32 Button Bit |
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number |
| mm | inch | Front | Gauge | Angle | Front | Side | kg |
| Spherical |
| 41 | 1 5/8 | 2×9 | 4×9 | 35° | 1 | 1 | 0.6 | 4148300487 |
| 41 | 1 5/8 | 2×8 | 5×9 | 35° | 1 | 1 | 0.7 | 4148300488 |
| 43 | 1 5/7 | 2×9 | 5×9 | 35° | 1 | 2 | 0.7 | 4148300489 |
| 43 | 1 5/7 | 2×9 | 5×10 | 35° | 1 | 1 | 0.7 | 4148300490 |
| 43 | 1 5/7 | 2×9 | 6×9 | 40° | 2 | - | 0.7 | 4148300491 |
| 45 | 1 7/9 | 2×9 | 5×11 | 30° | 1 | 1 | 0.8 | 4148300492 |
| 45 | 1 7/9 | 2×9 | 6×10 | 35° | 2 | - | 0.8 | 4148300493 |
| 45 | 1 7/9 | 3×8 | 6×10 | 30° | 3 | - | 0.8 | 4148300494 |
| 48 | 1 8/9 | 2×9 | 5×11 | 35° | 1 | 1 | 0.9 | 4148300495 |
| 48 | 1 8/9 | 2×9 | 6×10 | 40° | 2 | - | 0.9 | 4148300496 |
| 48 | 1 8/9 | 3×8 | 6×10 | 40° | 3 | - | 0.9 | 4148300497 |
| 48 | 1 8/9 | 3×9 | 6×10 | 30° | 3 | - | 0.9 | 4148300498 |
| 51 | 2 | 2×10 | 5×11 | 35° | 1 | 1 | 1 | 4148300499 |
| 51 | 2 | 2×10 | 6×10 | 40° | 2 | - | 1 | 4148300500 |
| 51 | 2 | 3×9 | 6×10 | 35° | 3 | - | 1 | 4148300501 |
| 57 | 2 1/4 | 3×9 | 6×11 | 35° | 3 | - | 1.3 | 4148300502 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 1.6 | 4148300503 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | 4148300504 |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.6 | 4148300505 |
| Ballistic | | | | | | | | |
| 41 | 1 5/8 | 2×8 | 5×9 | 40° | 1 | 1 | 0.7 | 4148300506 |
| 43 | 1 5/7 | 2×9 | 5×9 | 40° | 1 | 2 | 0.7 | 4148300507 |
| 43 | 1 5/7 | 2×9 | 6×9 | 40° | 2 | - | 0.7 | 4148300508 |
| 43 | 1 5/7 | 3×8 | 6×8 | 40° | 3 | 1 | 0.7 | 4148300509 |
| 45 | 1 7/9 | 2×9 | 5×11 | 30° | 1 | 2 | 0.8 | 4148300510 |
| 45 | 1 7/9 | 2×9 | 6×9 | 40° | 2 | 2 | 0.8 | 4148300511 |
| 45 | 1 7/9 | 3×8 | 6×9 | 40° | 3 | 1 | 0.8 | 4148300512 |
| 48 | 1 8/9 | 2×9 | 5×11 | 35° | 1 | 1 | 0.9 | 4148300513 |
| 48 | 1 8/9 | 2×9 | 6×10 | 40° | 2 | - | 0.9 | 4148300514 |
| 48 | 1 8/9 | 3×8 | 6×10 | 40° | 3 | - | 0.9 | 4148300515 |
| 51 | 2 | 2×10 | 6×10 | 40° | 2 | - | 1 | 4148300516 |
| 51 | 2 | 3×9 | 6×10 | 40° | 3 | 1 | 1 | 4148300517 |
| 54 | 2 1/8 | 3×9 | 6×10 | 40° | 3 | 1 | 1 | 4148300518 |
| 57 | 2 1/4 | 3×9 | 6×11 | 35° | 3 | - | 1.3 | 4148300519 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | 4148300520 |
R32 Thread Retract Button Bit Specification
| R32 Retract Button Bit |
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number |
| mm | inch | Front | Gauge | Angle | front | Side | kg |
| Spherical |
| 45 | 1 7/9 | 3×8 | 6×9 | 40° | 3 | - | 1.1 | 4148300521 |
| 48 | 1 8/9 | 3×9 | 6×10 | 30° | 3 | - | 1.2 | 4148300522 |
| 51 | 2 | 3×9 | 6×10 | 30° | 3 | - | 1.4 | 4148300523 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 2.2 | 4148300524 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 2.2 | 4148300525 |
| 76 | 3 | 4×11, 1×11 | 8×11 | 35° | 4 | 1 | 3.5 | 4148300526 |
| Ballistic |
| 45 | 1 7/9 | 3×8 | 6×9 | 40° | 3 | - | 1.1 | 4148300527 |
| 48 | 1 8/9 | 3×9 | 6×10 | 30° | 3 | - | 1.2 | 4148300528 |
| 51 | 2 | 3×9 | 6×10 | 30° | 3 | - | 1.4 | 4148300529 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 2.2 | 4148300530 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 2.2 | 4148300531 |
| 76 | 3 | 4×11, 1×11 | 8×11 | 35° | 4 | 1 | 3.5 | 4148300532 |
Applications
Used in small hole drilling.

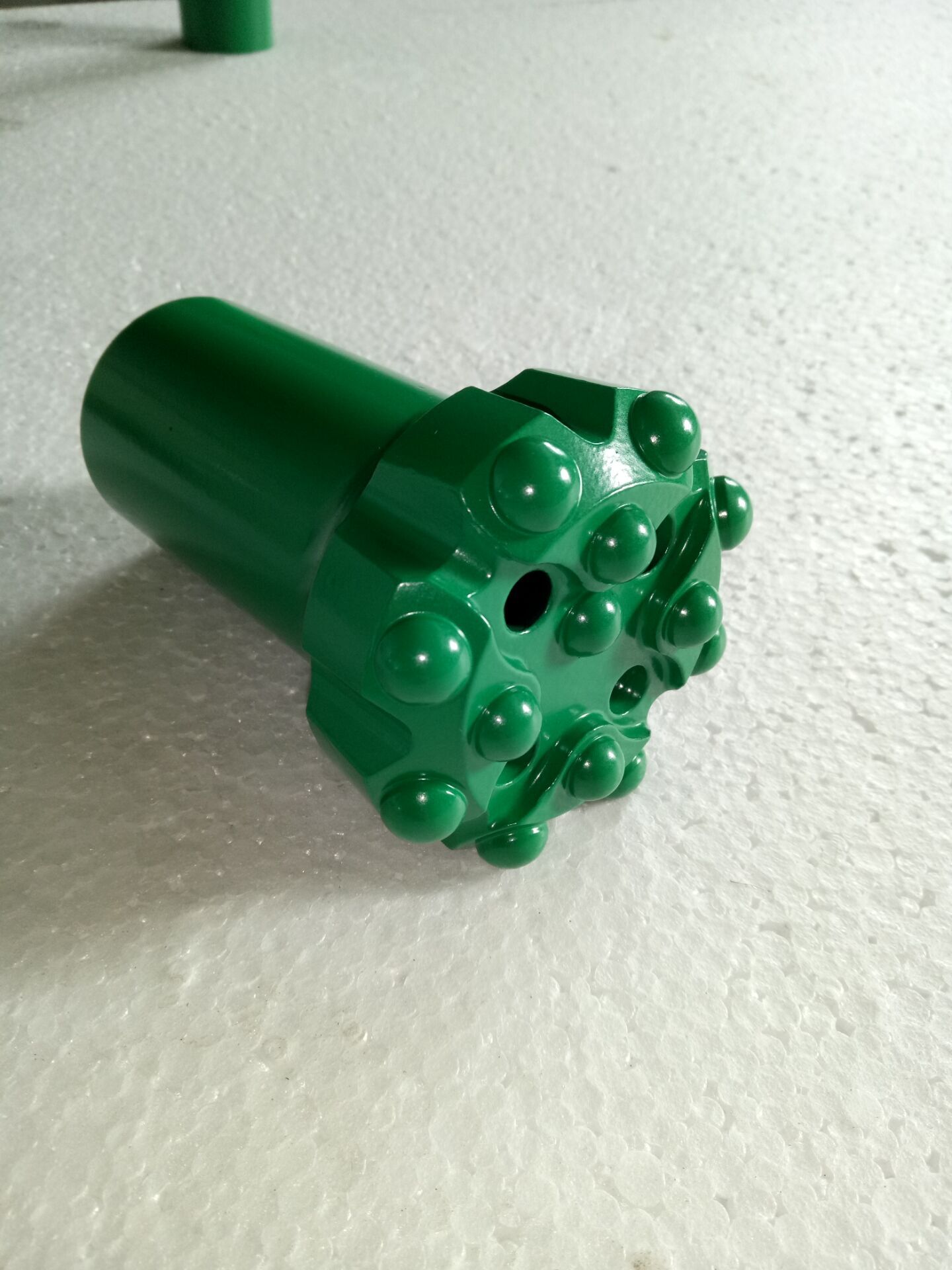

R32 64mm Button Bit Photos
Information need to know before order
1. Thread
2. Button Bit Diameter
3. Face Design: Flat Face or drop center
3. Body/Skirt: Rugular or retract body
4. Carbide/ Button: Spherical or Ballistic
