    Parallel Engine Heavy Lathe Machine / Metal Turning Lathe Machine 2 Tons

    Ask Lasest Price
    Brand Name : Baishun
    Model Number : CW6280
    Certification : ISO9001; CE
    Price : negotiation
    Delivery Time : In stock
    • Product Details
    • Company Profile

    Parallel Engine Heavy Lathe Machine / Metal Turning Lathe Machine 2 Tons

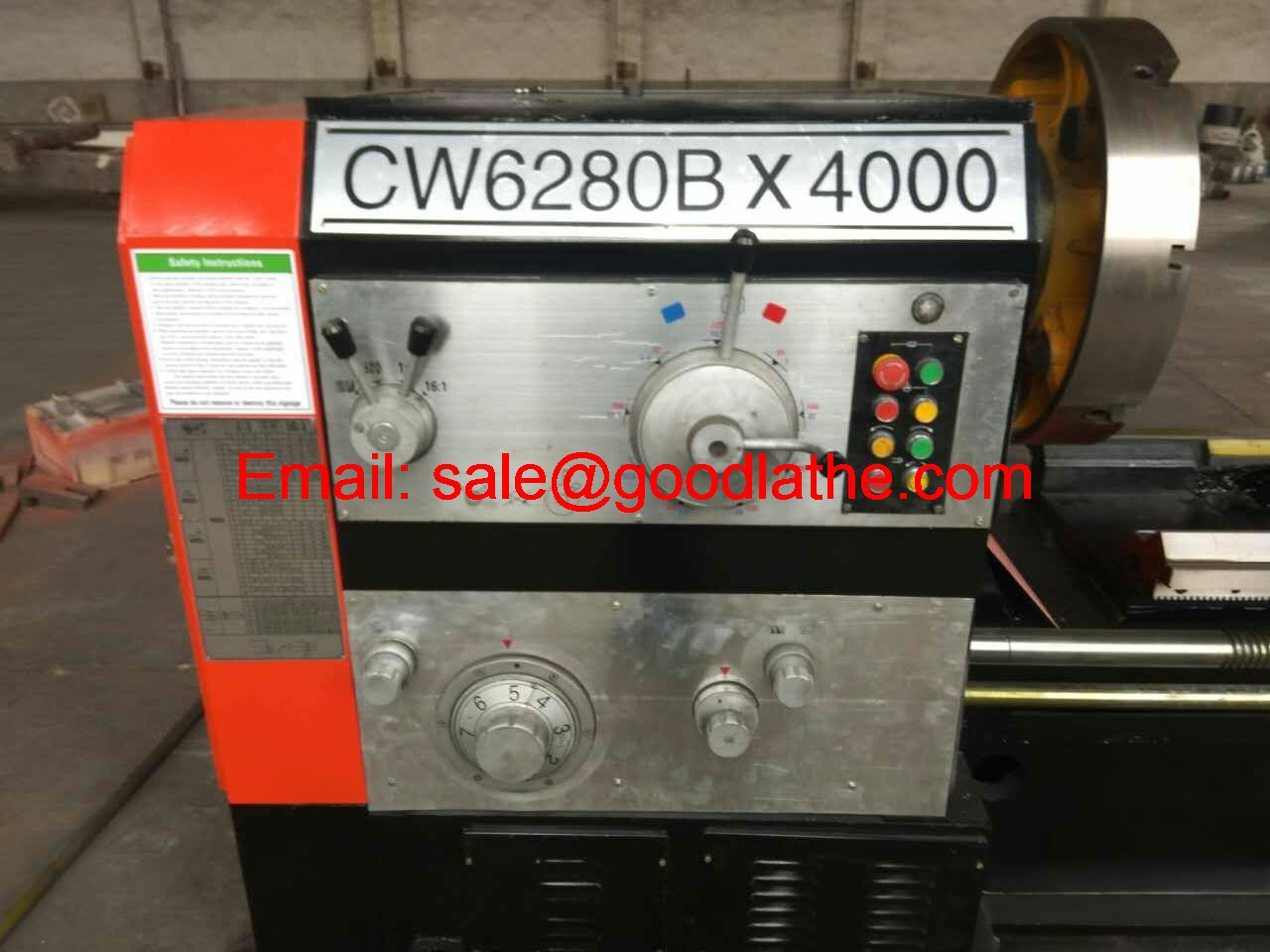

    CW6180 and CW6280 Parallel engine horizontal lathe machine for metal turning

    Product Application

    CW6180 and CW6280 Parallel engine horizontal lathe machine for metal turning lathe machine is suitable for internal and external turning, tappering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot.
    This machine could machining steel, casting, nonferrous metals and etc.
    The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness.
    horizontal lathe machine with handle breaker, easy to operate, safe and reliable.


    There are also following features:


    1. The side wall of bed is constructed with double-rib Plates, and the shape of internal ribs is of box type and bevel ribs combination. The rigidity is higher than that fo ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting.
    2. On apron, there is a device ,operated by a single lever, used for rapid traverse of the carriage . Spindle’s braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user’s choice.
    3. The saddle guide way is glued by “TSF” soft belt wear resisting materials.
    4. On user’s demand, we can equip the lathe with automatic feeding mechanism .The top slide can be used independently for turning of short cone. In combination with longitudinal feeding, it can also turn long taper surface.









    SPECIFICATIONS UNIVERSAL HEAVY DUTY LATHE CW6180 CW6280
    Item
    Unit
    CW6180 CW6280
    Swing over bed
    mm
    800
    Swing over carriage
    mm
    480
    Maximum length of workpiece
    mm
    750~10000
    Maximum turning length
    mm
    600~9850
    Swing over gap
    mm
    1000 (CW6280B)
    Effective width of gap
    mm
    300 (CW6280B)
    Pan of guideway
    mm
    550
    Spindle nose
    C11
    Spindle bore
    mm
    (B: 100) ; [C: 130]
    Taper hole of spindle
    1:20/120
    Range of spindle speeds
    r/min
    6-800
    Number of spindle speeds
    18
    Longitudinal and cross
    r/min
    64;0.1-24.32
    Cross-to-long longitudinal feed rate
    1.0/2.0
    Screw pitch of leadscrew
    mm
    12
    Number and range of metric thread
    mm
    50;1-240
    Number and range of inch thread
    26;14-1
    Number and range of module thread
    mm
    53;0.5-120
    Number and range of diametrical pitch thread
    24;28-1
    Rapid traverse speed of carriage
    mm/min
    4000
    Max.travel of cross slide
    mm
    540
    Max.travel of top slide
    mm
    200
    Section of tool shank
    mm
    32
    Diameter of tailstock quill
    mm
    100
    Travel of tailstock quill
    mm
    250
    Taper hole of tailstock quill
    Morse 5
    Main motor power
    kw
    11
    Machine mass
    kg
    3400/3600/3900/4400/4900/6000/7000/8000/9000/10000/11000/12000
    Length
    mm
    2958/3275/3725/4225/5225/6275/7355/8355/9275/11275/12275
    Width
    mm
    1473
    Height
    mm
    1622

    Standard Accessories:

    Centers
    Steady rest
    Follow rest
    4-jaw chuck
    Cooling system
    Lubricant system
    Work Lamp
    Tool Box
    Foundation bolts
    Leveling iron pads
