    Single Column Vertical Turning Lathe Machine / Large CNC Wood Turning Lathe Machine


    CNC Single Column Vertical Lathe Machine SIEMENS CNC Lathe for sale ​


    1. Product Discription of Vertical Lathe Machine:


    Chinese metal Vertical Turning Lathe Machine is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of the hole. The vertical lathe machine cutting action is controlled by the PLC, and feeding axis is driven by the AC asynchronous servo motor, with touch screen display and hand-held pulsed. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation. Tool rest adopts the T-type ram manual 5-tool position tool table structure with good rigidity and convenient tool change. Worktable is manual 4-jaw single movement chuck.


    2. Main technical data:


    SpecificationUnitC5108*H/2C5112*H/3C5116*H/5
    Max. turning DiameterMm80012501600
    Table diameterMm72010001400
    Max. height of workpieceMm8001000/12001000/1400
    Max. weight of workpieceT235
    Max. torque of tableKN.m202530
    Range of table speedsr/min10-3156.3-2005-160
    Max. cutting force of rail headKN181822
    Swivel of rail head°±30°±30°±30°
    Range of feed ratesMm/min0.8-860.8-860.8-86
    Horizontal travel of railheadMm570700915
    Ram travel of rail headMm650650800
    Rapid traverse of tool headMm/min180018001800
    Elevating speed of cross railMm/min440440440
    Height of tool bar sectionMm30*4030*4030*40
    Power of main motorKW222230
    Overall dimensionsmm2080*1820*27302360*2300*358902800*2700*3870
    Weight of machinet7.89.512.7

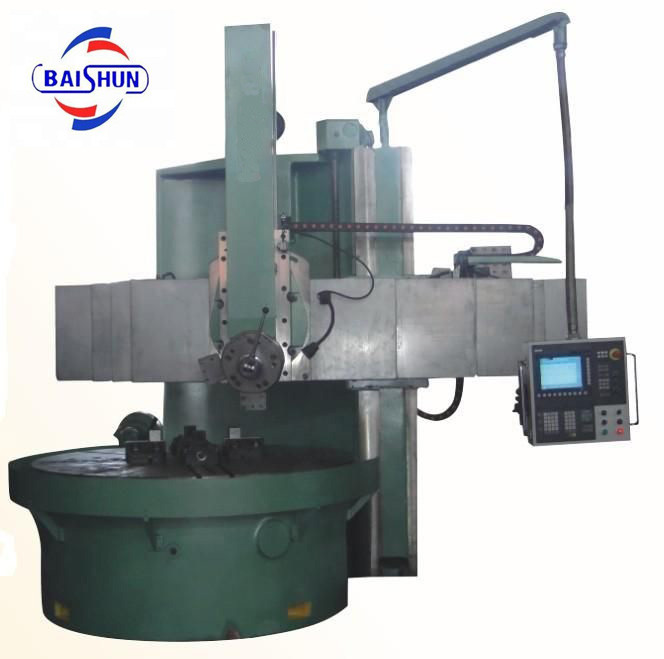

    3. Machine picture for your reference:



    Machine working accuracy inspection

    (1) Fine turning cylinder round ring surface

    a. Roundness: 0.015mm
    b. Cylindricity: for 300 measuring length is 0.02mm

    (2) Fine turning round disc end face flatness: 0.04mm

    Our Services

    1. 24 Hours after sales service by E-mail or Phone.

    2. 100% response rate.

    3. Engineers available to service overseas.
