China CNC Cutting flange light face lathe machine C6016 for selling
Product Discription
CNC Horizontal Lathe Machine or landing lathe is mainly used to
process large, medium plate and cylinder workpiece such as flange,
valve, gland, plate, motor cover, tire mold, etc.
CNC Horizontal Lathe Machine can be widely applied in the
production field of energy, transportation, oil, chemical industry,
mining, railway, car making and so on.

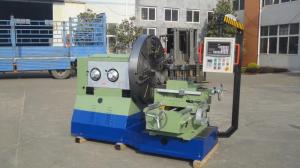

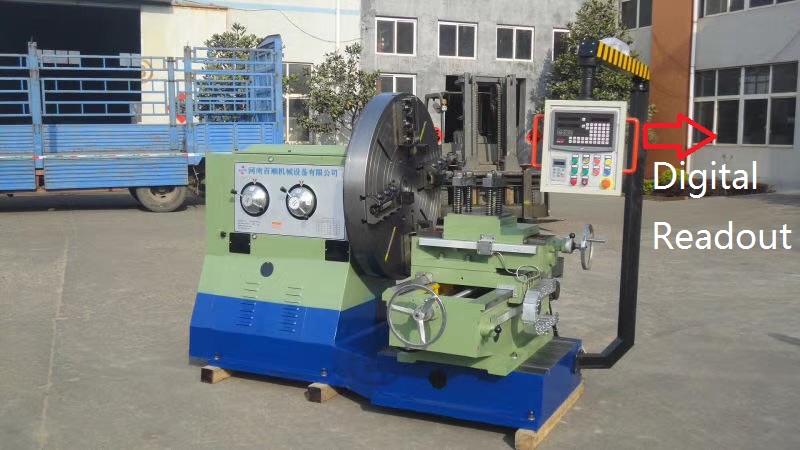

1. CNC Horizontal Lathe Machine is floor face lathe, mainly
suitable for high-speed steel or carbide cutting tools, cast iron,
steel, forgings and non-ferrous disc type rotating body metal parts
machining.
2. To complete the cylindrical, conical, end, grooving and other
machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low
noise;
4. All guideways are quenched and hardend, protection covers
equipped for the guideways, free from the chips falling on the
guideways, ensuring feed precision and speed.
Specifications
| Item | C6025 | C6031 |
| Center height above bed baseplate(mm) | 1120 | 1120 |
| Max.turning diameter over gap(mm) | 2500 | 3150 |
| Max. length of workpiece(mm) | 2000 | 2000 |
| Max. turning length in the gap(mm) | 630 | 630 |
| Max. weight of workpiece with chuck (kg) | 4000 | 4000 |
| Max. weight of workpiece between centers(kg) | 12000 | 12000 |
| Distance from work gravity to faceplate(mm) | 300 | 300 |
| Diameter of faceplate(mm) | 2000 | 2500 |
| Max.torque of faceplate(kNm) | 20 | 20 |
| Chunk speed increments | 18 | 18 |
| Chunk speed range(r/min) | 1.12-56 | 1.12-56 |
| Feed increments of tool post Longitudinal | 16 | 16 |
| Feed increments of tool post Longitudinal(mm/min) | 0.21-3.75 | 0.21-3.75 |
| Max.travel of tailstock quill(mm) | 220 | 220 |
| Center | 80 | 80 |
| Power of main motor(KW) | 30 | 30 |
| Speed of main moto(r/min) | 1460 | 1460 |
| Power of feed motor(KW) | 1.5 | 1.5 |
| Speed of feed motor(r/min) | 1300 | 1300 |
| Speed travel of tool post(mm) | 254 | 254 |
| Overall dimension(mm) | 5730×3060×2420 | 5730×3310×2670 |
| Net weight(kg) | 21300 | 26000 |
1. Function characteristics
The company produces various models of ground lathe also named face
lathe machine; also produce horizontal lathe machine, vertical
lathe, with the weight of large, rigid, and easy to operate,
powerful, and many other advantages. And has a CNC vertical lathe,
boring machine large landing, automatic gap submerged arc welding,
electro-optical tracking cutting machine and a variety of
measurement test equipment. Besides, using the vertical lathe to
turn vanes can eliminate the defects that a floor-type horizontal
machine is low in rotary speed, unstable in slewing and the like.
landing facing lathe machine is mainly used to process large,
medium plate and cylinder workpiece such as flange, valve, gland,
plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy,
transportation, oil, chemical industry, mining, railway, car making
and so on.
Features:
1. Geared Head Engine Lathe is floor face lathe, mainly suitable
for high-speed steel or carbide cutting tools, cast iron, steel,
forgings and non-ferrous disc type rotating body metal parts
machining.
2. To complete the cylindrical, conical, end, grooving and other
machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low
noise;
4. All guideways are quenched and hardend, protection covers
equipped for the guideways, free from the chips falling on the
guideways, ensuring feed precision and speed.
Our Service:
1) Top quality with low price and fast delivery.
2) We are a senior and professional manufacturer with 17 years’
rich experience, enjoy a high reputation among customers at home
and abroad.
3) We have a series of advanced equipment, which ensures a large
productive capacity and satisfactory quality.
4) Specific Notice: Customers can customize the lathes according to
their workpieces.(Based on changing configuration).
5) C6016, C6020 and C6025 also can be made into CNC lathes,
acdording to the customers` requirements.
