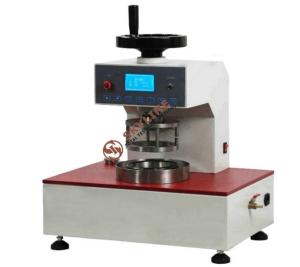

AATCC 127 SL-F43 Fabric Hydrostatic Pressure Tester / Textile Hydrostatic Testing Machine

SL-F43 Fabric Hydrostatic Pressure Tester /Textile Hydrostatic Testing Machine

Application
This machine is used for the determination of the hydrostatic pressure resistance of fabrics and also for determining the hydrostatic resistance of coating materials. The waterproofing resistance of various fabrics (such as canvas, tarpaulin, crepe cloth, tent cloth, rainproof clothing cloth, etc.) is expressed by the hydrostatic pressure of the fabric.

Applicable standards
GB/T 4744-2013 Textile water-repellent performance testing and evaluation hydrostatic pressure method; ISO-811, AATCC127, JIS L1092, FZ/T 01004

Features
1. This instrument is controlled by microcomputer, digital display, using high precision pressure sensor
2. The cloth sample clamping device is made of high quality stainless steel.
3. Select high-precision pressure sensor, the measurement result is accurate, stable and reliable.
4. The instrument is easy to operate and convenient

Technical Parameters

1.Sample clamping method: manual;

2.Measuring range: 0～300kPa (30mH2O)/0～100kPa (10mH2O)/0～50kPa (5mH2O) range optional;

3.Resolution 0.01kPa (1mmH2O);

4.Measurement accuracy: ≤±0.5% F•S;

5.Test times: ≤99 times, optional delete function;

6.Test methods: pressurization method, constant pressure method and other test methods;

7.Constant pressure method holding time: 0～99999.9S; Timing accuracy: ±0.1S;

8.Sample clamp area: 100cm²;

9.Total test time timing range: 0～999999.9, timing accuracy: ±0.1S;

10.Pressurization speed: 0.5~50kPa/min (50~5000mmH2O/min) digitally set arbitrarily;

11.Power supply: AC220V, 50Hz, 250W;

12.Dimensions: 470×410×60mm;

13.Weight: about 25kg;

Fabric Hydrostatic Pressure Tester.pdf
