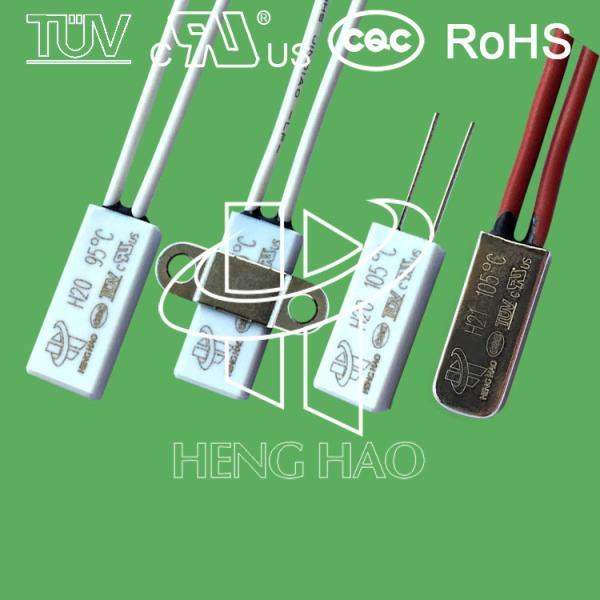

Normally Closed / Open Motor Thermal Switch Metal / Plastic Case Available thermal protector

BW series thermostat / KSD9700 thermal protector / BW9700 temperature protector

1. H20,H21 series thermostat’s Principle and structure

H20,H21serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.

2. H20,H21series thermal protector’s Specification

3. H20,H21series thermal protector’s Dimension

4. H20,H21series temperature protector’s Application

H20,H21series is applicable to chargeable battery, ballast, massager, micro motor, transformer, electric tools, heat electric appliance and instrument etc.

The product UL,CQC,TUV and RoHS certification approval.
