Self Locking Surface Mount Push Button Switch Modular Combustion Mode

Ask Lasest Price
Brand Name :	OEM

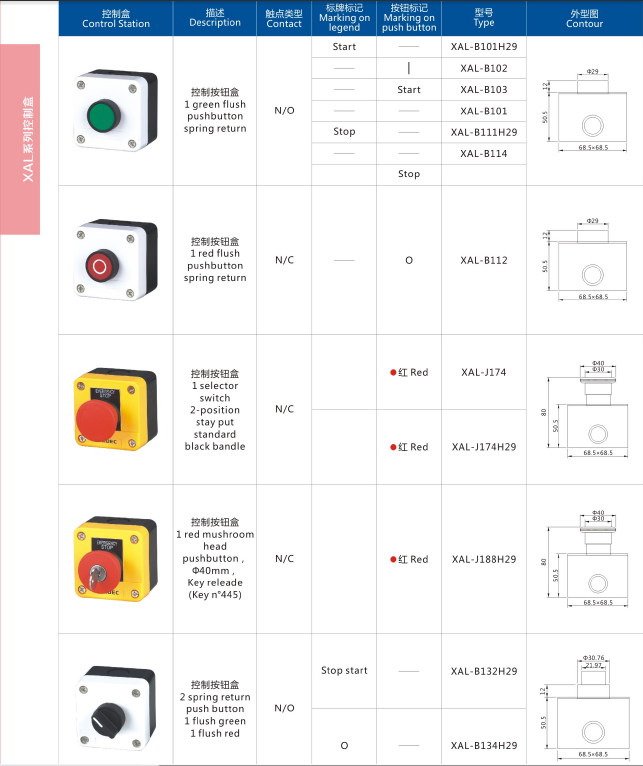

Model Number :	XAL-B273
Certification :	CE,RoHS,TUV
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	3000 Piece/Pieces per Day
Delivery Time :	15days after received payment

Add to Cart

Product Details
Company Profile

Self Locking Surface Mount Push Button Switch Modular Combustion Mode

XB2 Series Push Button Switch Red/Green/Yellow/White/Blue/Black Color

Description:
XB2 series are suitable to industrial control circuit with AC 50 Hz or 60Hz,0-380V rated voltage and 0-220V DC operating voltage, used for the control of magnetic starter, contactor, relay and other electric circuit.

Technical Specification:

Insulation resistance: ≥100M
The highest Dielectric streagth:3000VAc50hz
Vibration resistance: 50hz,Amplitude1.0mm
Shock resistance: ＞10g
Life---Electrical: ＞500000tmes
Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
Operation: 80gf-2200gf, according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
Pollution Degree: 3 degree

Switch Rating:

Ui Nominal Insulation Voltage(Ui)			440V
Thermal Current(Ith)			10A Temperature no more than rated current
Rated Voltage(V)			24V	48V	110V	220V	380V	500V
Working Current	AC 50/60Hz	AC-12	10A	10A	10A	6A	6A	6A
	AC 50/60Hz	AC-15	10A	10A	6A	3A	1.8A	1.4A
	DC	DC-12	8A	4A	2.2A	1.1A	1.1A	1.1A
	DC	DC-13	4A	2A	1.1A	0.6A	0.6A	0.6A
Contact Material			Silver Alloy

Lamp Specifications:

Power Type	AC/DC LED Light-emitting diodes
Rated Voltage	AC/DC 6V	AC/DC 12V	AC/DC 24V
	AC 110V	AC 220V	AC 380V
Lamp Life	40,000 Hours
Lamp Color	R/G/Y/W/B/b

The Installation Hole Size:

Push Button Type	A	B	C
Normal Type,Key-Lock	≥50mm	≥40mm	22mm
Selector Switch Type	≥55mm	≥40mm
Mushroom Type	≥50mm	≥50mm

Model Specification:
Contact Structure:
10 ---1NO;
01 ---1NC;
11 ---1NO1NC;
22 ---2NO2NC;
33 ---3NO3NC;
44 ---4NO4NC;
Normal Closed and Normal open can be combined at will;

Operating Type:
GN ---Momentary high type
BN --- Momentary flat type
BNZS ---Alternate type
X ---Selector Switch
XB ---Lever Switch
Y ---Key-Lock type
M --- Momentary type
ZS ---Emergency Type
DN ---llluminated Type
DNZS --- llluminated alternate Type

Express selector and key-lock operation position:
21 ---Two Position maintain type
22 ---Two Position momentary type
31 ---Three Position maintain type
33 ---Three Position momentary type

Color: Red/Green/Yellow/White/Blue/black

Protective degree: FP IP67; No letter means IP40

Normal working conditions:

1.Environment Temperature:-25℃~+55℃
2.Air Relative Humidity:≤98%
3.Normal work when the vibration frequency is 2~80Hz,the acceleration is 0.79g
4.Pollution grade is three,and installed sort is Ⅲ,protection grade is above IP65.
5.Altiude:≤2000m.
6.Mechanical Life: Momentary:＞2000000 times: alternate, selector＞1000000 times: key-lock, emergency＞1000000 times.
7.Shock Resistance: mushroom button 8g,buttons and LED 15g(40Hz<Frequency<500Hz)
8.Workability of contact point:AC-15:A600 or Ue=240V and Le=3A
DC-13:Q600 or Ue=250V and Le=0.27A comply IEC60947-5-1
9.Rated insulation voltage: Ui=440V,pollution degree 3,comply to IEC60947-5-1,Ui=600V

Further information:

1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.

2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.

3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.

FAQ

A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit

B. Would you accept OEM/ODM service?
Glad to say that there is planning department, technical department and mould tooling center in
our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.

C. Would you offer free sample?
Samples are freely provided and shipping costs is paid on your end usually.

D What's your guaranty time?
At least 2 years and depend the product

E What's your payment term?
T/T, L/C; other terms is negotiable after further check
