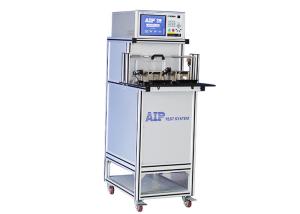

    Automatic Motor Testing Machine , Electric Motor Testing Panel For Milling Machine

    Ask Lasest Price
    Brand Name : AIP
    Model Number : AIP89XX
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Automatic Motor Testing Machine , Electric Motor Testing Panel For Milling Machine

    Electric Motor Testing Machine For Milling Machine, Automatic Motor Test


    1. Test product: motor of milling machine, powder milling machine.


    2. Application industry: home appliance tools


    3. Test: surge, winding resistance, insulation resistance, Hipot, Low-voltage start, no-load power


    4. Technical parameters:

    4.1 Surge

    output voltage setting range/precision500~3000V ±(3%×setting value+8V)
    sampling frequency100MHz
    waveform comparisonarea, area difference, corona and phase 3 waveforms displayed in the testing interface

    4.2 DC Winding resistance :

    testing range and precision10.0mΩ~2KΩ ±(0.3%×display value+3 words) temperature compensation can be set.
    test time range/resolution

    0.5~20s 0.1s/step


    temperature compensation functionYes
    temperature probe/rangeDS18b20 -10.0℃~+50.0℃
    precision±0.5°C(range: -10℃~+50℃)

    4.3 Insulation Resistance:

    output voltage setting range/precisionDC 500V/1000V ±(2%×setting value+10V)
    insulation resistance testing range/precision

    1~500MΩ

    ≤100MΩ:±(3%×setting value+0.5MΩ) ;>100 MΩ:±(5%×setting value+5MΩ)

    insulation resistance alarm setting rangeMax: 0~500MΩ; Min: 1~100MΩ
    test time range/resolution0.5~999s 0.1s/step

    4.4 AC Hipot:

    Output voltage setting range and precisionAC 500~3000V ±(2%×setting value+10V)
    breakdown current testing range/precision0.10~20.00mA ±(2%×setting value+0.05 mA)
    Hipot current presetting alarm rangeMax:0.10~20.00mA;Min:0.00~20.00mA
    Hipot current/resolution±(2% display value+0.05 mA);0.01 mA
    test time range/resolution0.5~999.9s 0.1s/step
    Arc detection0~9 level

    4.5 Low voltage start:

    voltage testing range and precisionAC:30~500V ±(0.5%×display value+1 words)
    current testing range and precisionAC:0.02~5.0A ±(0.5%×display value+2 words)
    power testing range and precision0.6-1500W ±(0.5%×display value+5 words)

    4.6 No-load:

    voltage testing range and precisionAC:30~500V ±(0.5%×display value+1 word)
    current testing range and precisionAC:0.02~5.0A ±(0.5%×display value+2 words)
    power testing range and precision0.6-1500W ±(0.5%×display value+5 words)

    5. Configuration

    No.NameSpecificationUnit
    1Master unitCustomizedSet
    2Test benchCustomized clampsSet
    3Test softwareSave the test requirements, data and control the test processSet
    4CabinetEasy to be moved with foot wheelsSet
