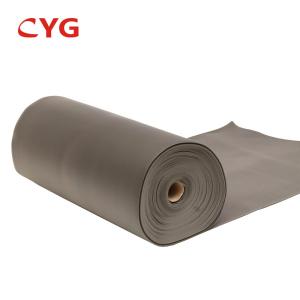

High Quality Irradiation Cross-linked Polyethylene Foam
Conductive IXPE / XPE foam is produced by compounding PE with some
special padding and foaming material, then cross linked by foaming.
Conductive IXPE/XPE foam is produced by compounding PE with some
special padding and foaming material, then cross linked by foaming.
The conductivity PE foam is a hi-tech ESD product which has very
good anti-static property, it is an ideal packing material for
optoelectronic devices and microelectronics devices, integrated
circuit, printed circuit board, communications, military products
etc.
Specifications
- Foam Type: IXPE FOAM / IXLPE FOAM
|
| Property | Standard | Unit | Value |
| Density | - | Kg/m³ | 40.00 |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.47~0.48 |
| Longitudinal | 0.53~0.54 |
| Elongation | Transverse | ISO-1798 | % | 134.80~140.20 |
| Longitudinal | 127.40~139.60 |
| Tearing Strength | Transverse | ISO-8067
| Kn/m | 2.00~2.06 |
| Longitudinal | 2.17~2.31 |
| Compression 25% | ISO-3386-1 | kPa | 66.60 |
| Compression 40% | ISO-3386-1 | kPa | 99.20 |
| Compression 50% | ISO-3386-1 | kPa | 132.60 |
| Compression Set 25% 0.5H | ISO-1856 | % | 13.20 |
| Compression Set 25% 24H | ISO-1856 | % | 5.00 |
| Operating Temperature Range | Internal | °C | (-40,+80) |
| Water Absorption % Volume (Maximum) | Internal | % | 0.40 |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.049 |
| Shore - C | ASTM D2240 | °C | 34 |
| Flammability | FMVSS302 | mm/min | - |
Additional Information
● All tests were carried out in 23°C ± 2.
● Data represents typical values measured on a 8mm thick specimen
and should be considered as guidelines only.
1. Thickness ranging from 0.5mm to 45mm for one single layer.
2. Width is maximum (1500mm).
3. size is custom-made.
Features
IXPE conductive foam is permanently anti-static
2. Friendly environmentally, non-toxic, no odor.
3. Good performance, can be processed to various shapes by
customers' requirements.
Use and applications
1.The use of the aforementioned components, boards, modules
packages, electronics, telecommunications
industry:
2.Applications in aviation, aerospace, communications, military
ordnance and chemical industry.
Advantage
1.CYG Brand, quality guarantee. high quality and competitive price,
2.Best service to you and short delivery time.
Certification:
We complied with SGS, ROHS ,ISO9001,UL international standards.
