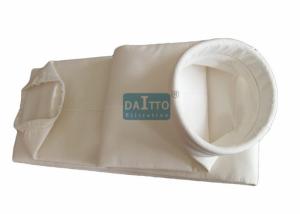

100%PTFE () dust filter bags
Be produced from 100% PTFE fiber which has been punched in
three-dimentional structure. They have excellent features such as
excellent flexibility, molding capability, high tensile strength,
creep resistance, high and low temperature resistance, corrosion
resistance and anti-aging. 100% PTFE filter material can meet
requirements in hostile environments of temperature fluctuating and
acid & alkali in all PH range. The lifespan of PTFE filter material
will be guaranteed for over 4 years as long as the temperature is
controlled under the maximum operating temperature.
Specification:
Size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
Any length is available. Special size is customizable.
Process Method: sewing or welded
Dust collector filter bag tops include:Beaded snap band top, corded
or ring top, raw top, flat sewn top, top with grommet, top with
loop, gasket top and other.
| Heading Product cord | HD-PTFE |
| Compositions | 100%PTFE |
| Weight(g/ m2) | 800 |
| Thickness (mm) | 1.0～1.5 |
| Air permeability (L/m2/s) | 1.8-3.6 |
| Tensile strength(N/5 20cm) | wrap | ≥600 |
| weft | ≥800 |
| Tensile Elongation(％) | wrap | <20 |
| weft | <50 |
| Broken strength(Mpa/min) | 1.95 |
| Continuous working temperature(℃) | ≤250 |
| Short time Working temperature(℃) | 300 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
| The stability of water solution | Excellent |
| Finishing treatment | Singeing,Het setting,Calendering |
Advantage:
1. dust collector filter bags are designed to be mounted and
gasketed firmly into place with a snap band, corded cuff, or clamp
to ensure dust tight seal.
2. dust collector filter bag are carefully fabricated and sized to
ensure ease of installation and
change-out.
3. Various coatings and finishes can be applied to either side of
the dust collector bag to enhance cleaning and efficiencies, as
well as prolonging service life.
4. Groundwire, anti-collapse rings and other options can be easily
incorporated into bag construction.
Application:
• Combustion
• Coal burning boiler
• waste incineration
• carbon black producing
• Tio2 producing for fume treatment or dust collection
FAQ:
Q: Are you trading company or manufacturer ?
A: Yes, we are the manufacturer with continuous and improved R & D,
production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is
not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30%
T/T in advance ,balance before shipment. ( Mainly accept Paypal,
West Union and T/T)
Shanghai Daitto Filtration is one of China industrial dust collector filter bag
manufacturers, factory and supplies, is making and supplying China
polyesterindustrial dust collector filter bags, nomex aramid
industrial dust collector filter bags, pps industrial dust
collector filter bags, p84 industrial dust collector filter bags,
ptfe industrial dust collector filter bags, fiberglass industrial
dust collector filter bags, acrylic dust industrial collector
filter bags, ptfe laminated dust industrial collector filter bags,
high temperature dust collector filter bags with good quality and
good prices.
