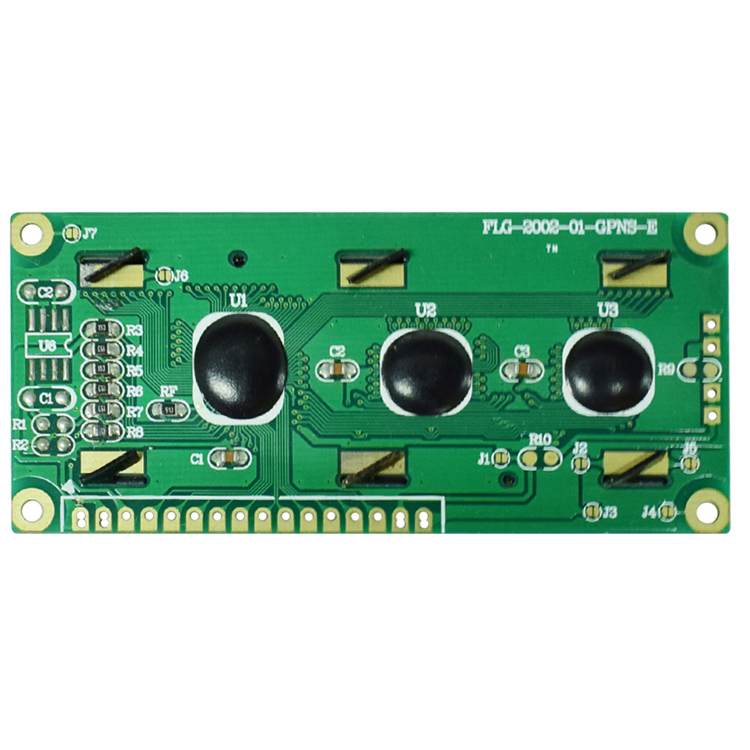

Item number: AM2002B (2002-01-GPNS-E)
Key Description: 20*2 character dot matrix LCD module, 2002 LCM
industrial control display screen, parallel port
Category: character type
Product label: STN character LCD module
Applications: electronic tag, handheld devices, security,
industrial control equipment, medical display, communication
equipment, instruments and meters, telephone
Panel type: STN-LCD
LCD module
Panel size: 2.5"
Resolution: (5 * 8) *40
Physical shape: flat rectangle
Dot size: 0.48 (width) * 0.66 (high) mm
Point spacing: 0.04 (width) * 0.04 (high) mm
Display size: 60.7 (width) * 11.5 (high) mm (A.A)
Visual size: 66 (width) * 16 (high) mm (V.A)
Appearance size: 80 (width) * 36 (high) mm
Max thickness: 9.5 mm
Polarizer: reflective
Color mode: gray film positive display
Best viewing angle: 6 o'clock
Display color: monochrome
Duty cycle: 1/16
Controller: AIP31066
Bonding mode: COB
Backlight type: -
Signal type: parallel port data
Signal pin: 16Pins
Touch screen: None
Operating temperature: -20 ~ 70 degrees C
Storage temperature: -30 ~ 80 degrees C
