HSD Spindle Servo Motor 4 Axis CNC Router Machine With 300 Degree
Swing Spindle Head
This type 4 Axises CNC Milling Machine is made for engraving larger
model, and dring holes. The spindle could swing to drlling holes in
differents degrees.
Advantage:
1) This 5 axis cnc router machine with 8 rotary axis is with
emovable table, when you cut and engrave the flat / plane, just
need to put on this table; when you do the column / round /
cylinder, just need to take down the moveable table;
2) Each spindle has two heads with two tools, which is equivalent
to Auto Tool Changer;
3) Multi spindles can work at the same time,also can work alone,
many times increasing inefficiency. can also control the machine
heads independently, can use only one head to process and make
increasing the working area;
4) This machine is very suitable for furniture bulk production such
as desk legs/stair handrails and other column.
cylinder products,it also can easily engrave 360 degree human body,
Buddhist statue, sculpture and other art works;
5) Easy-to-operate Taiwan SYNTEC control system;
6) Powerful PowerMill software with post processor;
7) Except X, Y, Z and Rotary Axis, the 5th axis is the spindle can
swing front and back, which can do more complex work.
| Model | DHRM-1325 4A |
| Spindle | 9.0 KW HSD Air cooling Spindle |
| The 4th axis | Swing Head |
| Working Area | 1300 mm * 2500 mm * 400 mm |
| Body Structure | Vibration Temper aging treatment Body |

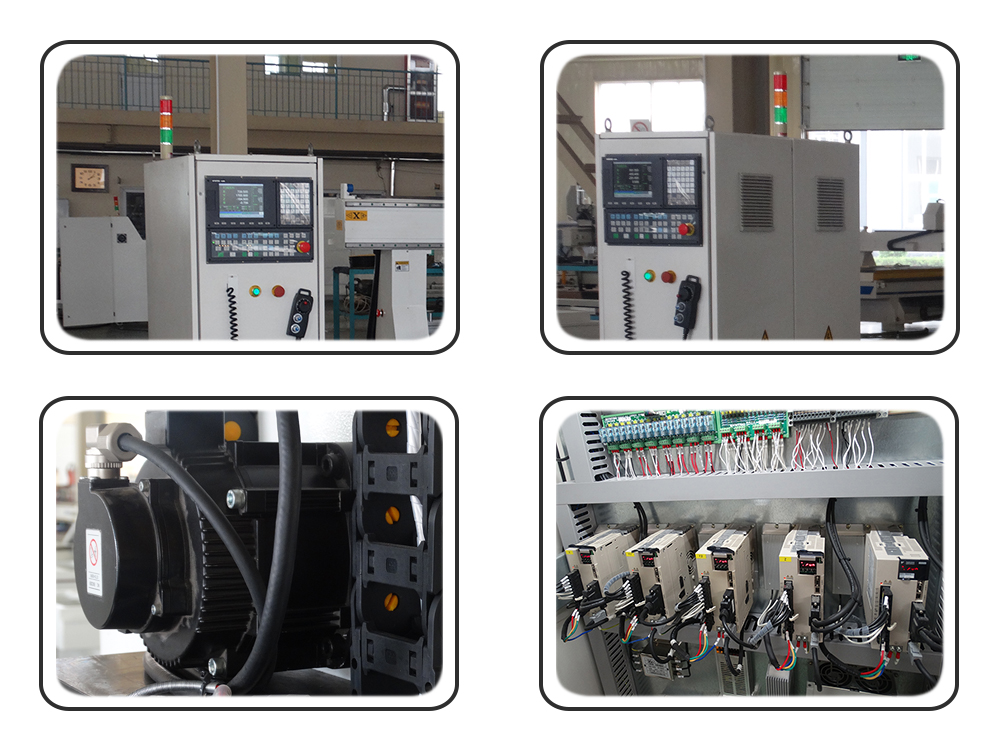

| Motor And Driver | Yaskawa Servo Motor And Driver |
| Table Type | Vacuum Table with Schmitz Table |
| Z Axis Transmission | Taiwan Ball Screw Transmission |
| Control System | Syntec 6MB Control System with handle wheel |
| Inverter | 13 KW Delta Inverter |
| X,Y Axis Transmission | Gear And Rack Transmission |
| Rail | Hiwin 25 mm square rail |
| Others | USB interface, Filter, tool sensor, Vacuum pump etc |
Quality guarantee:
1) Built quality control system. We built an effect quality control
system to make sure every details under the quality control, and we
adjust quality control system for better effect at any time.
2) Employee trainning. Our train all the staff to make every
emloyee to know the important of quality, and help them to learn
how to finish their jobs more sophisticated and more professional.
3) Material quality guarantee. All our partners have good
reputation in CNC industry. Further more, we check all the
materials carefully to remove unqualified raw materials.
4) Auxiliary precision instruments. During the production, we adopt
auxiliary precision instruments to low Hhuman factor error, to
incream the precision.
5) Standardize the operation. We have a whole operating standard to
make sure the production quality, and we check every details during
the producing to reduce errors.
6) Finished product testing. We test the finished machine for 48
hours to test the accuracy and stability, to make sure every
machine could have perfect effect in your factories.
After-sale service:
1) Two year’s warranty. We will provide all cnc router with 2 years
warranty except for the consumption. During the warranty, we will
provide new replaced parts for free. We provide quality guarantee
for two years, we will replace your damage parts for free during
the guarantee period.
2) Technical support for ever. We will provide you technical
consultancy services for free.
3) Software updating for whole life. We will provide you software
updating service for free.
4) Overseas service. Our engineer could provide you on-site service
if necessary.
5) Remote service. We could provide you romete service through
skype, QQ, whats app, email etc 24 hours, 7days, 12 months.
6) Vedio manul with machine. We will provide you vedio manul to
help you to know our machine better.
