    Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project

    Ask Lasest Price
    Brand Name : Shenhong
    Model Number : SA-YQ30
    Certification : ISO
    Price : US $35000~60000
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 20 work days after deposit
    • Product Details
    • Company Profile

    Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project


    Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project

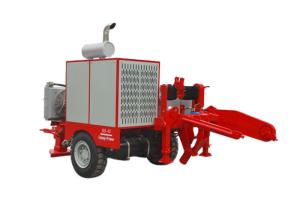

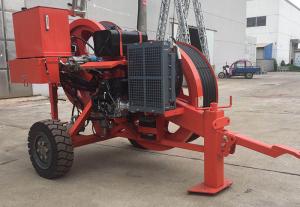

    This SA-YQ30 Hydraulic Puller possesses the steplessly adjustable pulling speed and traction force. What's more, the pull in the rope can be visually displayed on the line pull gauge. This equipment also comes with an overload automatic protection system. The maximum traction force for conductor stringing operation can be preset.

    The spring applied hydraulically released brake can act automatically. Thus, the secure operation of our hydraulic puller can be well ensured, when the motor suddenly turns off or other reasons cause the hydraulic failure.

    Furthermore, our SA-YQ30 Hydraulic Puller is equipped with the steel wire rope automatically winding device, which can automatically arrange the rope and also make loading and unloading convenient.

    Technical Parameter

    ModelSA-YQ30 Hydraulic Puller
    Maximum Traction Force (kN)30
    Continuous Tractive Effort (kN)25
    Maximum Pulling Speed (km/h)5
    Bullwheel Bottom of Groove Diameter (mm)Φ300
    Number of Bullwheel Grooves7
    Maximum Diameter of Suitable Steel Rope (mm)Φ13
    Maximum Through Connector Diameter (mm)Φ40
    Engine Power / Speed (kW/rpm)31/2200
    Dimensions (mm)3200× 1600× 2000
    Weight (kg)1500

    Main Components

    EngineChinese famous diesel engine
    RadiatorAKG
    Hydraulic Instrument
    Main PumpSauer Danfoss pump
    Main MotorItalian SAI technique
    Suitable DrumModel GSP950 drum with its item number of 07125A
