Flat Touch Screen Computer Monitor 8" Pcap - Multi Resistive Touch High Bright Optional

    Buy cheap Flat Touch Screen Computer Monitor 8

    Buy cheap Flat Touch Screen Computer Monitor 8
    • Buy cheap Flat Touch Screen Computer Monitor 8
    • Buy cheap Flat Touch Screen Computer Monitor 8

    Flat Touch Screen Computer Monitor 8" Pcap - Multi Resistive Touch High Bright Optional

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD08PMT5X31
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    Flat Touch Screen Computer Monitor 8" Pcap - Multi Resistive Touch High Bright Optional

    8" True Flat Panel Mounted Monitor with pcap-multi and resistive touch high bright optional


    ITD provides industrial grade Panel mount LCD Monitors that are designed and built to withstand the effects of rugged harsh environments typically encountered in industrial and commercial related applications. Our rugged panel mount monitors are available with a wide range of touchscreen technologies, which include, resistive and capacitive.


    BENEFITES

    - Superior picture quality, stunning display

    - Rugged Panel Mount Design

    - NEMA 4X rated for wash-down applications

    - High temperature, shock and vibration specs

    - Tempered Glass or Touch Screen Window

    - High Reliability with field MTBFs greater than 50,000 hours

    - 1.5-year warranty!


    ModelITD08PMT5X31ITD101PMT5X31ITD10PMT5X31ITD11PMT5X31ITD12PMT5X31
    Size8”10.1”10.4”11.6”12.1”
    Active Area162(W) x 121.5(H)222.52(W) x 125.11(H)211.2(W)*158.4(H)256.32(H)x 144.18(V)246.0(H) x 184.5(V)
    Pixel Pitch0.20250.16290.2640.13350.3075
    Contrast Ratio500:1500:1500:1800:1500:1
    Resolution800 x 600 or 1024 x 7681366 x 768800 x 600 or 1024 x 7681920 x 1080800 x 600 or 1024 x 768
    Brightness250nits300nits300nits350nits300nits
    Viewing Angles70/70/50/7080/80/80/8070/70/60/7089/89/89/8970/70/60/60
    Response Time10ms5ms35ms262K35ms
    Colors262K262K262K25ms262K
    BacklightLEDLEDLEDLEDLED
    ModelITD12PMT5X31WITD13PMT5X31WITD15PMT5X31WITD156PMT5X31ITD17PMT5X31
    Size12.1”(16:10)13.3”15”15.6”17”
    Active Area261.12(H) x 163.2(V)293.76(H) x 165.24V)304.12(H)x 228.09(V)344.232(H)x193.536(V)337.92(H) x 270.33(V)
    Pixel Pitch0.2040.1530.2970.2520.264
    Contrast Ratio700:1800:1700:1500:11000:1
    Resolution1280 x 8001920 x 10801024 x 7681366 x 7681280 x 1024
    Brightness250nits300nits250nits300nits250nits
    Viewing Angles85/85/80/8085/85/85/8580/80/60/7085/85/80/8085/85/80/80
    Response Time4ms14ms35ms6ms5ms
    Colors262K16.7M16.2M16.2M16.7M
    BacklightLEDLEDLEDLEDLED
    ModelITD173PMT5X31ITD19PMT5X31ITD19PMT5X31WITD21PMT5X31ITD22PMT5X31
    Size17.3”19”19”(16:10)21.5”22”
    Active Area381.888(H) x 214.812(V)376.32(H) x 301.06(V)408.32(H) x 255.2(V)476.64(H)x248.25(V)473.76(H)x296.1(V)
    Pixel Pitch0.2940.09450.2480.282
    Contrast Ratio600:11000:11000:11000:11000:1
    Resolution1920 x 10801280 x 10241440 x 9001920 x 10801680 x 1050
    Brightness300nits250nits250nits250nits250nits
    Viewing Angles80/80/60/8085/85/80/8085/85/80/8085/85/80/8085/85/80/80
    Response Time14ms5ms3.6ms5ms5ms
    Colors16.7MM16.7M16.7M16.7M16.7M
    BacklightLEDLEDLEDLEDLED

    SPECIFICATION

    Input Signal ConnectorsVGA, DVI, HDMI
    Power InputExternal Power Supply with Universal/Auto-Sensing
    Power ConsumptionOperation/Power Saving TBA
    Key ControlPower on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left)
    Touch PanelProjected Capacitive Touch Panel with 10 Multi Touch Points
    USB/RS232 port
    7H Surface Hardness, Vandal Proof
    Plug and Play in Windows XP/7/8/10; Linux, Mac, Android with driver
    Operating Temperature-10~60℃ (-20~70℃ optional)
    Storage Temperature-20~70℃
    Operating Humidity10%~90%
    MTBF50000h
    AccessoriesPower Supply, VGA/DVI/HDMI cable, USB Cable, Mounting Brackets(optional)
    Order InformationFlat Bezel Panel Mount PCAP Touch Monitor/ITD**PMT5X31
    Flat Bezel Panel Mount Resistive Touch Monitor /ITD**PMT1X31
    Flat Bezel Panel Mount Monitor with Tempered Glass /ITD**PMG1X31
    Flat Bezel Panel Mount PCAP Touch Monitor 1000nits/ITD**PMT5HBX31
    Flat Bezel Panel Mount Resistive Touch Monitor 1000nits /ITD**PMT1HBX31
    Flat Bezel Panel Mount Monitor with Tempered Glass 1000nits/ITD**PMG1HBX31

    Product Image

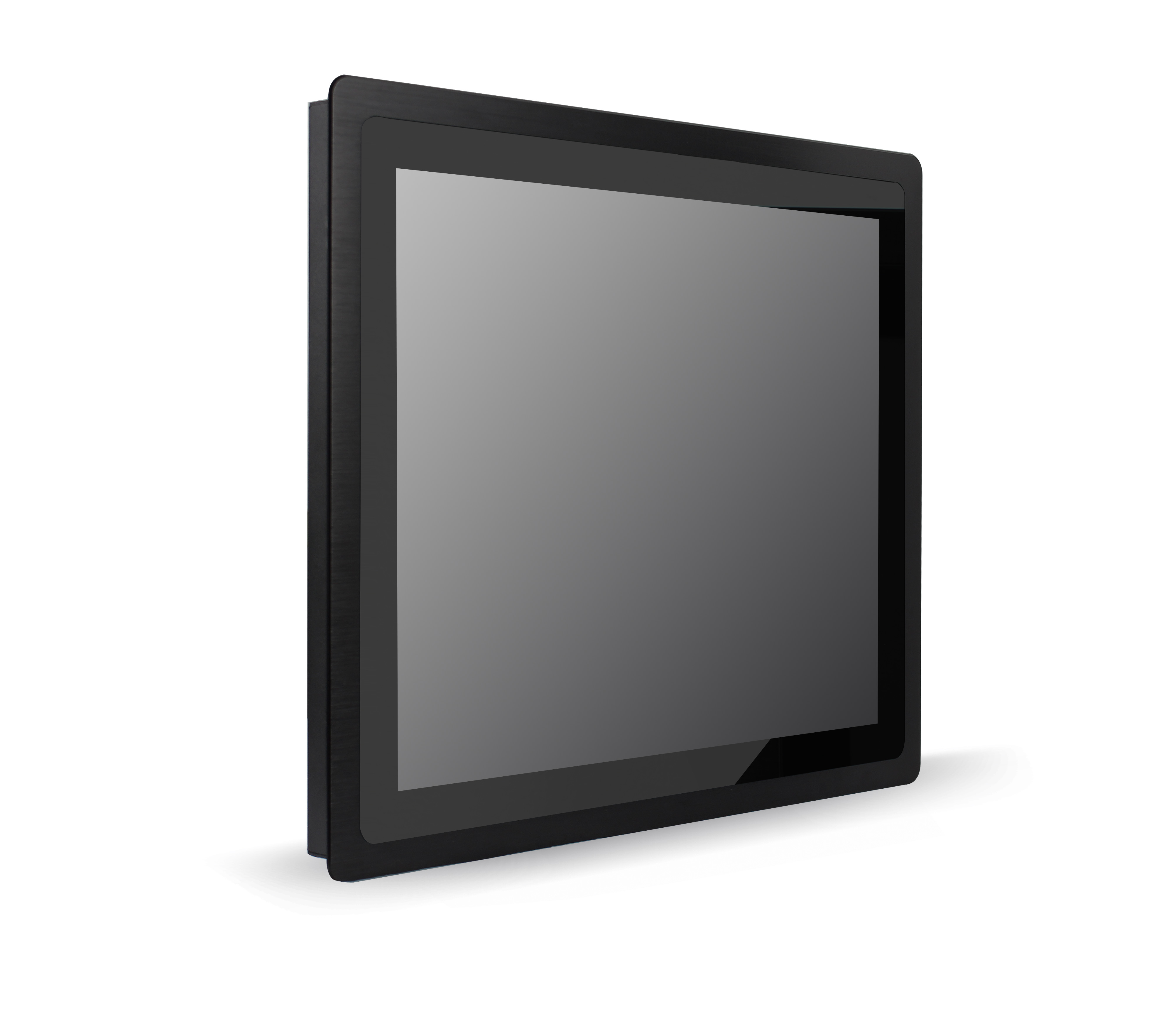

    8 inch panel mount monitor

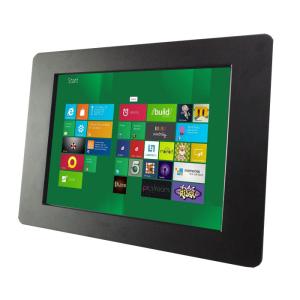

    8 inch panel mount touchscreen
