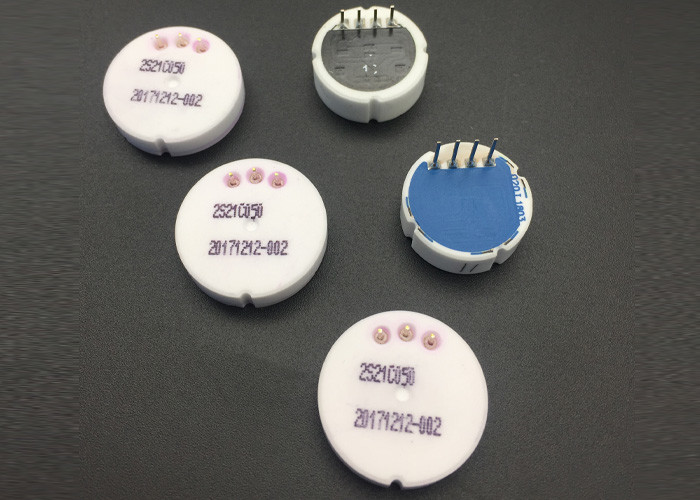

    CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors

    Ask Lasest Price
    Brand Name : Kacise
    Model Number : CCP serices
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability : 2000 Pieces per Week
    Delivery Time : 5-8 work day
    Certification : CE
    • Product Details
    • Company Profile

    CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors

    CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors


    1. Product Description



    Pressure sensors are crucial components employed in various industries, and among the three main sensor types, ceramic capacitive pressure sensors stand out. Traditional silicon piezoresistive products face challenges in maintaining measurement accuracy and long-term reliability in high-temperature and corrosive testing environments due to their structural and material characteristics. Ceramic capacitive pressure sensors address these drawbacks, ensuring accurate measurements and long-term reliability in such challenging conditions.


    These sensors utilize ceramic as the sensitive element, employing a capacitive structure for non-intermediate liquid dry measurement. The pressure-induced changes in capacitance values serve as the basis for pressure measurement. In contrast to conventional silicon piezoresistive sensors, ceramic capacitive sensors excel in adapting to diverse measuring media environments. They maintain high measurement accuracy over a broad temperature range (-40℃ ~ 125℃). Applications for these sensors span across automotive systems (oil pressure, transmission pressure), petrochemical (air conditioning pressure), pipeline pressure, and industries such as food and medical intake pressure, as well as water pipe pressure.


    2. Details


    Shape and Dimensions



    Product Identification



    Techinical parameters


    Pressure range0.1~10Mpa
    Response time<1mS
    Total error(Nu-linertiy+hysteresis+repeatibility)0.1...0.2FS%
    Isolation>4KV
    Isolation resistor@100VDC>500M
    Temperature drift±0.01 %FS/℃
    Long term stability<0.1% FSO/year
    Working temperature-40~125℃

    3. Feature


    Ceramic capacitor type

    Measurement without intermediary liquid
    Fast response and high accuracy
    High reliability
    AEC-Q200D verified


    4. Typical Application


    Pressure instrumentation

    Pneumatic and hydraulic equipment

    Automobile and air compressor

    Biomedical instrument

    Refrigeration and HVAC control

    Household appliances and consumer electronics

    Ships and marine systems

    Aircraft and avionics systems
