N Type Long Range Wireless Modem / 900 Mhz Radio Modem 5 Watt Output Power

5 watt output power FDD Cofdm IP radio modem military radio communication system full duplex data transceiver

Product introduction

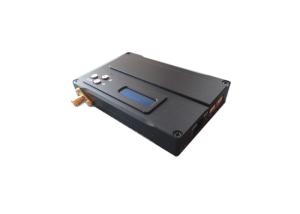

HN-720(260mm*180mm*35mm) FDD COFDM, using COFDM multi carrier modulation and demodulation technology supporting non sight distance (NLOS) transmission, supports narrow band (1MHz), low latency, high sensitivity long distance transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design, setting network, modulation and demodulation, full frequency RF output in one. It can help you to complete the design of long distance wireless link more conveniently and quickly, and provide high definition digital broadcasting, security system, public security, armed police, fire-fighting and other fields.

Application

It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.

Outline drawing

Key features

• Using non-standard COFDM modulation and demodulation technology
• support non line of sight (NLOS) and high-speed mobile transmission.
• low latency /End to end transmission large data
• Transparent network / serial data transmission
• Military level non-standard 128 bit dynamic AES encryption
• Support full band / ultra narrow band / multi bandwidth modulation (1M/2M/4M/8/).
• Integrated design, small volume, low power consumption
• Provide high definition LCD control panel, make the user interface simple and efficiently

Technical characteristics

Shenzhen Huanuo Innovate Technology co.,LTD. is a high-tech company focusing on research and production of wireless mobile digital video tranmission system.Our company is focused on the development of wireless video transmission equipment,with the strength of Mini cofdm video transmitter & receiver,customized solutions and OEM module as customer's request is our advantage.Engineers and R&D developers account for 70 % of the staff, after research development and technology accumulation for years our company has grasped core technologies in RF field,and have the ability to develop chip level and algorithm level technology.

Since the establishment of the company,we adhere to market-oriented,building the network and technology platform.We base ourselves on the construction of innovative high-tech company,the company has a professional research team with RF technology and MPEG2/MPEG4/H.264 code,digital video processing, embedded equipment fields.And provide users with integrated COFDM wireless video transmission systems and technical support services.

Shenzhen Huanuo Innovate Technology co.,LTD. continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments.Which designs and manufactures portable COFDM digital microwave systems, including a full line of analog and digital COFDM portable and fixed transmitters, miniature video/audio transmitters and receivers for surveillance applications, lightweight video/data transmitters and receivers for UAV and UGV system and are built to withstand harsh environments while offering industry-grade performance and features.

Our engineering staff is experienced in a broad range of active and passive RF and microwave electronics and embedded software and firmware design. With a full suite of design tools and test equipment, we welcome your custom product requirements. Our factory is configured to support total project management from the design and prototype stages through full production.
