Small Size Horizontal Putty Mortar Cement Spiral Ribbon Mixer
Machine
Raw material of dry mortar:
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite,
expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly
ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
The advantages of the equipment :
This model mixer can stop the main motor of the mixer when
discharging, so as to save the electricity consumption. We assume
that every batch takes 10 minute as a circle.
Every batch save electricity: motor 7.5kw*10minutes =1.25kw
every day produce 10 batch total save electricity: 1.25kw*10=12.5kw
so that every year saving electricity: 12.5*300 days=3750kw
We assure 1RMB/kw so that it can save RMB3750 every year.
Main technical parameters
| Item | Mixing motor(kw) | Hoist Motor (kw) | Production capacity (KG/Time) | Capacity (t/h) | Dimension(mm0 | Barrel Dia(mm) |
| MG500 Type | 5.5 | 3 | 500 | 1-1.5 | 3000*800*2000 | Φ800 |
| MG1000 Type | 7.5 | 3 | 1000 | 2-3 | 3300*1050*2100 | Φ1050 |
| MG1500 Type | 11 | 3 | 1500 | 3-4 | 3300*1050*2100 | Φ1050 |
| MG2000 Type | 11 | 4 | 2000 | 4-5 | 3680*1200*2000 | Φ1200 |

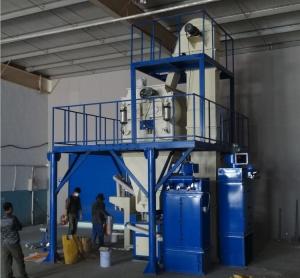

The MGDM-1.0 Improved Dry Mortar Mixer Machine in factory:
