China Jiangsu Yangzhou Aviation Professional production: FH-005 Square steel column hydraulic lift track type driving

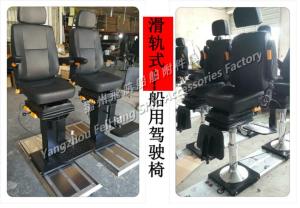

FH-005 Square Steel column hydraulic lifting track type driving chair
Marine Track Driving chair-fh005

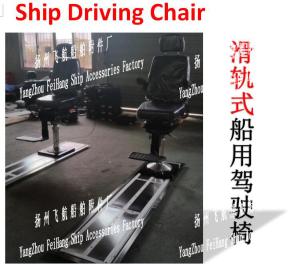

About the marine Slide-type driving Chair/track-type Marine Driving Chair product Overview: The cockpit driving chair is a seat for the crew to facilitate the operation of the Pilot.

About FH-005 Marine Slide-type driving chair/orbital boat driving Chair technical Parameters:

1. Ergonomic design;
2. The seat can be moved on the high intensity double slide slide;
3. Adjustable backrest and headrest;
4. Seat height can be adjusted by angle;
5. Seat can be moved forward and backward;
6. Foldable/adjustable Angle Comfortable seat armrest;
7. Seats can be rotated 360 degrees, multi-point positioning;
8. Foot Pedal height can be adjusted/foldable; 9. The Upright column can be up and down vertically;

About FH-005 boat slide type driving Chair/track type boat Driving Chair performance description:

The upper seat of the 1.fh-005 boat track type driving chair can be moved before and after 120mm, height adjustment 60mm, seat surface inclination range ±12°;
2.fh-005 the seat backrest of the ship's orbital driving Chair can adjust the angle 85°-135°, The headrest is adjusted up and down 50mm, the armrest multi-point positioning adjustment;
3.fh-005 the seat pedal hydraulic lifting and adjusting range 0-150mm of the ship track type driving chair;
The seat of the 4.fh-005 boat Track-type driving chair can be rotated 360°, multi-point positioning control;
5.fh-005 the seat of the orbital driving chair of the ship can be 0-5000mm on the track slide, the width of the guide rail is 500mm, the depth 28mm, the transmission part is the wheel type unimpeded double sliding, multi-point positioning control;
6.fh-005 the seat pedal of the orbital driving chair of the ship can be used for 90° regression, the upper and lower position adjustment range 0-50mm;
7.fh-005 the seat of the orbital driving chair of the ship can withstand the torque above 150ft.lb and reach the ad level standard;

About ship cockpit slide-operated driving Chair dimensions:

About the ship cockpit rail-operated driving Chair track installation method:

Shipping track cockpit driving chair order Notice:

1. According to the requirements, the chair surface material of this chair is black high-quality pu imitation leather, can be customized leather or fabric according to the requirements;

2. Chair face shape and color can be customized according to customer requirements, generally black mostly 3. Slide-type Driving Chair standard track length of 1.2 meters, if necessary to increase the length, can be customized according to the requirements;

Yangzhou Feihang Ship Accessories Factory is a production enterprise specializing in marine pipe fittings, marine hydraulic valve parts and marine interior armored products.

The marine accessories produced by our company are complete in specifications, such as cast iron, cast steel, bronze and stainless steel, which are widely used in ships, oil and offshore platforms.

All products implement one-stop production line operation, and strictly implement the ISO9001-2000 international quality management system standards, and carry out standardized production and quality inspection.

Companies adhering to the "integrity management, mutual benefit, and common development" business purposes and "excellent products, sincere service, customer satisfaction," the quality management policy, has won the trust of our customers, is now with a number of shipyards, ship owners, and ships The unit has established long-term cooperative relationships, and its products are sold well all over the country and exported to Singapore, Taiwan, Japan, India, South Africa and other countries and regions. And has won the praise of many ship owners at home and abroad. In order to meet the needs of the market and the continuous expansion of the company's business, we are moving towards the goal of “more comprehensive, more professional and better quality” and strive to build one of the ship accessory suppliers recognized by more customers at home and abroad.
