    Digital Fluke 787 Process Meter / Fluke Multimeter 789 4 - 20mA Current Source

    Ask Lasest Price
    Brand Name : Fluke
    Model Number : FLUKE787 FLUKE789
    Certification : CE
    Price : consult for best discount
    Payment Terms : T/T, , Western Union,Paypal,, MoneyGram,, L/C
    Supply Ability : 500 Pcs/month
    Delivery Time : 2-7 days
    • Product Details
    • Company Profile

    Digital Fluke 787 Process Meter / Fluke Multimeter 789 4 - 20mA Current Source

    Fluke 787 789 Digital Clamp Meter Multimeter Digital Meter Calibrator with 4-20mA Current Source


    Overview

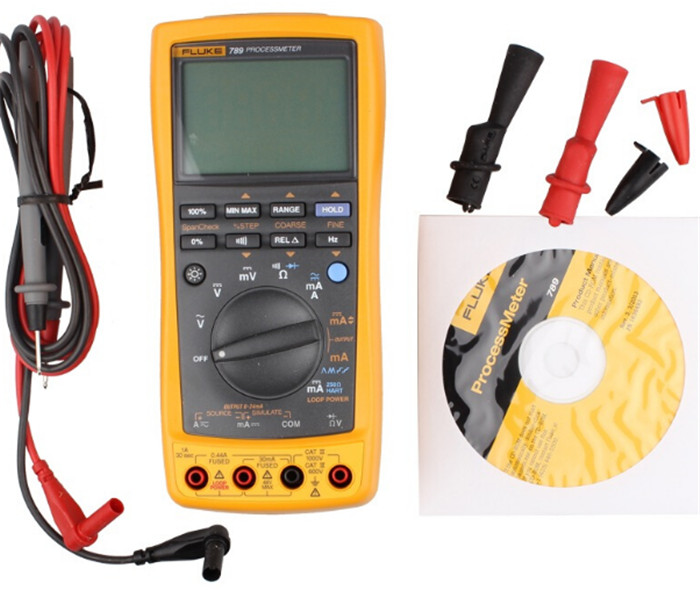

    Fluke 789 ProcessMeter doubles your troubleshooting power and is Fluke Connect-enabled

    The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a loop calibrator with the power of a digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a display that's not only twice as large as the Fluke 787, but also twice as bright with two levels of backlighting. And its built-in, selectable 250 ohm HART® resistor eliminates the need to carry a separate resistor.

    The 789 also has a 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can add an optional temperature measurement module and the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location. So now process technicians can do a lot more while carrying a lot less.


    Other useful features:

    • Includes 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check
    • Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
    • Simultaneous displays mA and % of scale readings
    • Provides 20 mA DC current source/loop calibrator/simulator
    • Offers manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
    • Delivers 0.1% dc voltage accuracy and 0.05% dc current accuracy
    • Provides 1200 ohm drive capability on mA source
    • Offers HART mode setting with loop power and a built-in 250 ohm resistor
    • Offers externally accessible fuses and batteries for easy replacement

    Specification Of Fluke 789 Process Meter

    Specifications
    Current measurementRange0-1 A AC or DC
    Resolution1 mA
    Accuracy0.2% + 2 LSD (DC)
    Range0-30 mA
    Resolution0.001 mA
    Accuracy0.05% + 2 lSD
    Current sourcingRange0-20 mA or 4-20 mA
    Resolution0.05% of span
    Drive capability24 V Compliance or 1200 Ω @ 20 mA
    Frequencyto 19.999 kHz, 0.005% + 1 LSD
    ContinuityBeeps for resistance < 100 Ω
    Voltage measurementRange0-1000 V AC (true-rms) or DC
    Resolution0.1 mV to 1.0 V
    Accuracy0.1% Rdg + 1 LSD (VDC)
    Resistance measurementto 40 MΩ, 0.2% + 1 LSD
    Diode test2.0 V shoes diode voltage drop
    Display current and % of spanYes
    Auto Step, Auto RampYes
    Environmental Specifications
    Operating temperature-20°C to 55°C
    Storage temperature-40°C to 60°C
    Humidity (without condensation)95% up to 30°C
    75% up to 40°C
    45% up to 50°C
    35% up to 55°C
    Temperature coefficient0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
    Safety Specifications
    Electrical safetyDesigned in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
    Overvoltage categoryIEC 1010-1 CAT III 1000 V
    IEC 1010-1 CAT IV 600 V
    Maximum voltage1000 V RMS
    Mechanical and General Specifications
    Size (H x W x L)50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
    Weight610 g (1.6 lbs)
    Batteries4 AA alkaline batteries
    Warranty3 years
    Battery life140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
    Shock and vibrationRandom, 2 g, 5-500 Hz
    1 meter drop test
