Acti 9 IC60H Plug In Miniature Circuit Breakers Vigi 1A To 63A Schneider

Name: Acti 9 IC60H Plug In Miniature Circuit Breakers Vigi 1A To 63A Schneider
Brand: SCHNEIDER
Price: 1 USD

Ask Lasest Price
Brand Name :	SCHNEIDER
Model Number :	Schneider Acti 9 iC60H
Certification :	CE
Price :	consult best discount
Payment Terms :	T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability :	1000
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

Acti 9 IC60H Plug In Miniature Circuit Breakers Vigi 1A To 63A Schneider

Schneider Acti 9 iC60H Miniature Circuit Breaker vigi 1A to 63A Mini circuit breaker MCB

Specifications

ACTI 9 iC60N Series electric mcb breaker 16 amp IC60 MCB with 1Pole, 2Pole, 3Pole, 4Pole 6A to 63A has passed CE, ROHS

ACTI 9 Series electric mcb breaker 16 amp IC60 MCB with 1Pole, 2Pole, 3Pole, 4Pole 6A to 63A has passed CE, ROHS

Mini circuit breaker is applicable to electric circuits with rated voltage 230V/415V AC, Frequency 50/60Hz and rated current up to 63Amp. The product provides protection against overload and short circuit to electric circuits and equipments in household and commercial installation. MCB is also used as Non-frequent changeover of electric circuit

Features

Fully compliant with national standards and easy to install, the Acti 9 Vigi iC60 comes with a wealth of features:

Class-2 insulation: ensures continuous protection for both operators and unqualified personnel.
VISI-TRIP: quickly detects faulty outgoers and reduces intervention time.
Fully immune earth leakage protection: provides enhanced continuity of service, especially with the new “SI” (Super Immune) type for application in polluted environments and networks.
Easily connect to Acti 9 iC60 Miniature Circuit-Breakers (MCBs) either electronically or manually.
Nominal current ranges from 25 to 63 A.
Comes in “SI” (Super Immune), AC, and A types.
30 mA sensitivity for additional protection against direct contact (in compliance with IEC 60364).
100 mA, 300 mA, 500 mA and 1000 mA sensitivities for additional protection against fire and indirect contact (in compliance with IEC 60364).
“SI” (Super Immune) type: protects sensitive circuits (IT equipment) and those prone to disturbances (electronic ballasts for light fixtures, power electronics).
Selective type: guarantees selectivity to correctly distinguish between different residual current devices (RCDs) and trip the device closest to the fault.
Complies with IEC EN 61009-1 standard, certified by national authorities.
Acti 9 iC60 DIN rail miniature circuit breakers (MCBs) retain the same characteristics when combined with an Acti 9 Vigi iC60 DIN rail add-on residual current device (RCD).

TECHNICAL DATA of iC60H Miniature Circuit Breaker

Product name	MCB IC60N 1P,2P,3P,4P AC 50/60Hz circuit breaker
Pole NO.	1,2,3,4
Rated Current(A)	1,2,3,4,6,10,16,20,25,32,40,50,63
Rated frequency	50/60Hz
Rated voltage	230/400V AC
Rated withstand current	1000A Within lesc
Electro-mechanical endurance	1000 Cycles
Rated short-circuit making capacity	10000A
Connection Capacity	Rigid conductor 25mm2
Connection Terminal	Screw terminal;Pillar terminal with lamp
Installation	Panel mounting

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Yueqing Richuang Automation Equipment Co.,Ltd
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

Acti 9 IC60H Plug In Miniature Circuit Breakers Vigi 1A To 63A Schneider

Acti 9 IC60H Plug In Miniature Circuit Breakers Vigi 1A To 63A Schneider

Acti 9 IC60H Plug In Miniature Circuit Breakers Vigi 1A To 63A Schneider

Specifications

mini circuit breaker

micro circuit breaker

Acti 9 IC60H Plug In Miniature Circuit Breakers Vigi 1A To 63A Schneider

You May Like

Compact NS NSX SERIES Miniature Circuit Breaker With Optional Functions 630 A

Schneider Acti 9 IC60N 3 Pole Circuit Breaker / MCB 1p 2p 3p 4p Micro Circuit Breaker

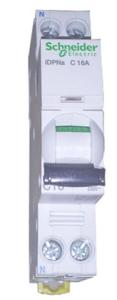

Schneider Acti 9 IDPN Mcb Circuit Breaker / Vigi 1A To 63A Schneider Circuit Breaker

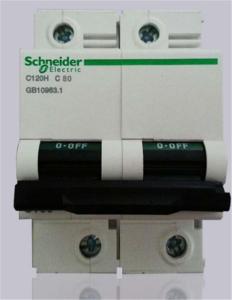

Acti 9 C120 Miniature Circuit Breaker Schneider 125A MCB B C D Curves
