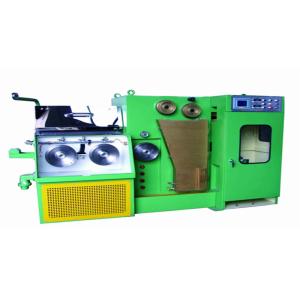

    22D High Speed Copper Wire Drawing Machine Easy Maintenance For Hard Wire

    Ask Lasest Price
    Brand Name : Newlead
    Model Number : 22D
    Certification : CE
    Price : Negotiation | 1 Unit/Units copper wire making machine (Min. Order)
    Supply Ability : 60 sets in 90 days
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    22D High Speed Copper Wire Drawing Machine Easy Maintenance For Hard Wire

    22D High speed Fine wire copper wire drawing machine for hard wire


    1.wire drawing in a single, compact

    unit


    2.ergonomic and user-friendly machine design,

    with easy maintenance

    3.left and right-hand versions for Non Ferrous

    metal wires with the highest quality

    requirements

    Item22D
    Inlet diameter(mm)Ф0.6-Ф1.2
    Outlet diameter(mm)Ф0.1-Ф0.4
    Max drawing speed(MPM)2500
    Max drawing dies No.24
    Slip ratio of m/c13%
    Slip ratio of fix speed capstan8%
    CapstanTungsten carbide
    Max capstan diameterФ242
    Fix speed capstan diameterФ207
    FrameIron cast
    Main motor11KW Three phase inductor motor
    Spooler motor3.7KW Three phase inductor motor
    Revise systemPID synchronous spooler
    Inverter controlDual inverter control
    Transmission typeFlat belt
    Pay-off methodOver head
    Traversing unitFlat belt + synchronous motor
    Tension controlWeight balance by swing arm
    Lubrication system of wire drawingSpray type
    Suitable diameter of spool(mm)Ф300
    Capacity for wire receiving(KG)50-60
    Bobbin loading& unloading typeShaft type
    Power source380V
    BrakePneumatic brake
    Dimension(mm)2050Lx1600Wx1900H
    Weight(KG)2000KG
