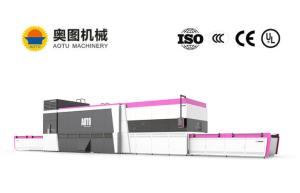

AOTU Machinery Factory Tempered Glass Making Machine Flat Glass Tempering Furnace

Name: AOTU Machinery Factory Tempered Glass Making Machine Flat Glass Tempering Furnace
Brand: AUTO
Price: 50000 USD

Ask Lasest Price
Brand Name :	AUTO
Model Number :	AT-TA2442
Certification :	CE
Price :	USD 50000-200000USD/SET
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60 sets/year
Delivery Time :	60-90 working days

Add to Cart

Product Details
Company Profile

AOTU Machinery Factory Tempered Glass Making Machine Flat Glass Tempering Furnace

AOTU Machinery Factory

Tempered Glass Making Machine Flat Glass Tempering Furnace

FURNACE MODEL NO. AT-TA2442

Supply scope:
1. Loading table 2. Heating Section 3. Flat Quenching section
4. Unloading table 5. Control System 6. Cooling System 7. Spare parts

Glass size:
1. Flat tempering Glass size:
Max glass size : 2440*4200mm
Min glass size : 100mm×250mm
Flat tempering glass thickness range: 4mm~19mm

Suitable glass sorts:
Low-e glass (e value 0.15-0.02)
Clear float glass
Coated glasses
Patterned glass
Tinted glass

**Main Parameters**
Type	Max.Glass Size(mm)	Min.Glass Size(mm)	Glass Thickness(mm)	Productivity(M2/H)	Installed Capacity(KVA)
AT-TA1225	1250*2500	100*250	3-19	53	200
AT-TA1636	1600*3660	100*250	3-19	91	400
AT-TA2036	2000*3660	100*250	4-19	126	500
AT-TA2436	2440*3660	100*300	4-25	152	630
AT-TA2442	2440*4200	100*300	4-25	173	630
AT-TA2450	2440*5000	100*300	4-25	202	800
AT-TA2460	2440*6000	100*300	4-25	245	1000
AT-TA2842	2850*4200	200*350	5-25	213	800
AT-TA2850	2850*5000	200*350	5-25	247	1000
AT-TA2860	2850*6000	200*350	5-25	267	1000
AT-TA3050	3000*5000	200*400	5-25	301	1000
AT-TA3060	3000*6000	200*400	5-25	321	1250
AT-TA3350	3300*5000	200*400	5-25	300	1000
AT-TA3360	3300*6000	200*400	5-25	352	1250
