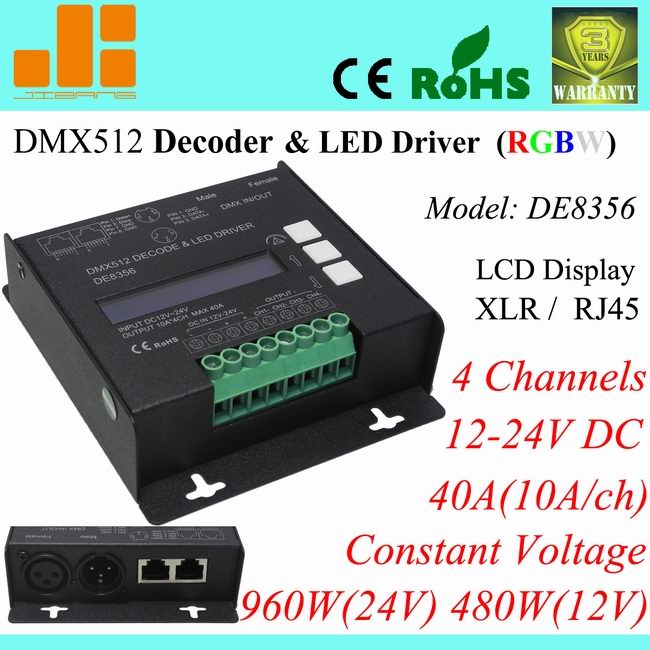

    LCD Display Black 4CH DMX Decoder With Micro - Computer Control Technology

    Ask Lasest Price
    Brand Name : JIBANG
    Model Number : DE8356
    Certification : CE ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 50000 pieces per week
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    LCD Display Black 4CH DMX Decoder With Micro - Computer Control Technology


    4CH dmx decoder Constant Voltage DMX512 with port XLR RJ45 LCD display 10A/CH


    Model : DE8356


    SUMMARIZE:


    Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~4 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.


    Product Features:


    Meets DMX512/1990,with RJ45 interface and XLR to choose.
    256-levels brightness,full-color with driver controls.
    Power without ashing, smooth at low.
    4 ways of output channel, single channel maximum 10A output drive, total output is less than 40A.
    Can achieve asynchronous color changes effect under working with controller.
    With the light color selected mechanism, and be able to control the light with 1~4 colors.
    Setting the DMX address freely by LCD screen display.


    Control channels: 4CH

    Input:: DC12-24V

    Output: 10A/CH, MAX40A

    MAX Power:960W(24V)/480W(12V)

    Frequency: 5000HZ


    Signal Input: DMX512/1990

    The light gray level: 256

    Protection Class: IP40

    Gross Weight:: 400g

    Product size: L122*W107*H33(mm)

    Work Temp.: 0~70℃



    Product Size :


    Size:L122*W107*H33mm

    Weight :400g



    FAQ

    Why choose us ?
    (1)We are a manufacturer specializing in the R&D of LED Controllers over 8 years in Shanghai .
    (2)All our products got the CE , ROHS certificates .
    (3)Three years warranty for all products .
    (4)OEM/ODM are available for us .

    How could I pay for it ?
    T/T , Western Union ,Paypal and Credit Card are available for payment .


    How fast can I get these products ?
    Usually , samples order within 2-3 working days. Batch order within 5-7working days .


    What should we do if having problems after receiving your goods ?
    Quality is our culture.Strictly inspected before shipping . Once you receivedissatisfied products , please contact us freely in time,we will do our best to deal with .
